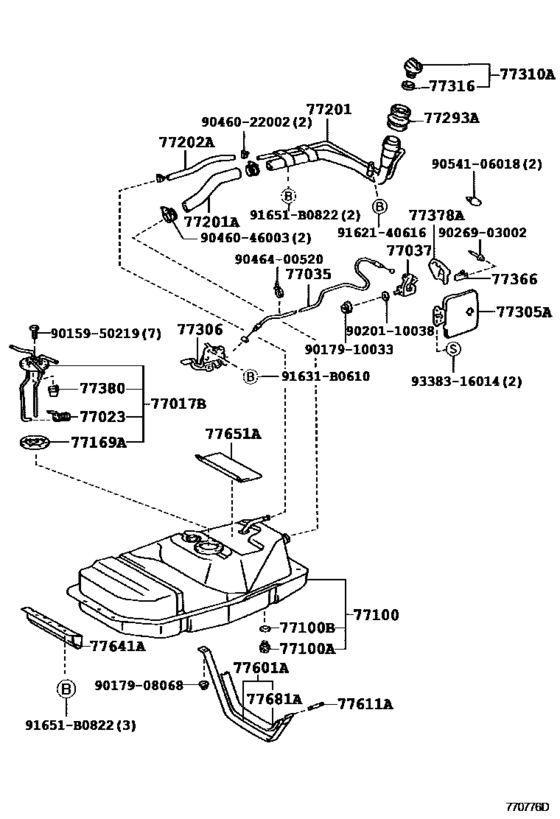

| 77001-0B030 |
Tank Assy, Fuel |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77017-38111 |
Tube Sub-Assy, Fuel Tank Vent |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77023-32040 |
Filter Sub-Assy, Fuel Suction Tube |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77035-0B010 |
Cable Sub-Assy, Fuel Lid Lock Control |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77037-38010 |
Lock Sub-Assy, Fuel Tank Cap |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77169-38010 |
Gasket, Fuel Suction Tube Set |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77201-0B030 |
Pipe Sub-Assy, Fuel Tank Inlet |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77217-0B030 |
Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77293-0B010 |
Shield, Fuel Tank Filler Pipe, No.3 |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77305-0B020 |
Lid Sub-Assy, Fuel Filler Opening |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77306-38010 |
Lever Sub-Assy, Fuel Lid Lock Open |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77310-12150 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77316-16010 |
Gasket (For Fuel Tank Cap) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77366-38010 |
Spring, Fuel Filler Opening Lid Hinge |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77378-90K00 |
Cover, Fuel Filler Opening Lid Lock |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77380-26010 |
Valve Assy, Fuel Cut Off |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77601-0B020 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77641-0B011 |
Protector, Fuel Tank, No.1 |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77651-38010 |
Cushion, Fuel Tank, No.1 |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77653-25010 |
Pin (For Fuel Tank Band) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 77681-0B020 |
Seat, Fuel Tank Band |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90105-12116 |
Plug(For Fuel Tank) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90159-50219 |
BOLT |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90159-A0057 |
New Genuine Part |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90179-08068 |
NUT |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90179-10033 |
Nut (For Front Wiper Arm Setting) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90201-10038 |
Washer |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90269-03002 |
RIVET |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90430-12245 |
Gasket(For Fuel Tank) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90460-22001 |
CLAMP |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90460-22002 |
CLAMP |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90460-46003 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90460-46005 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90464-00520 |
New Genuine Part |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90541-06018 |
CUSHION |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 90541-06058 |
CUSHION |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 91621-40616 |
Step Cover Bolt |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 91631-B0610 |
BOLTWWASHER |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 91651-B0822 |
BOLT WWASHER |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 93383-16014 |
New Genuine Part |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
| 95313-13034 |
Hose, Fuel, No.1 (For Breather Tube) |
Fuel Tank & Tube ([10.1998 - ] (9810- )LF80..LHD ; (0001- )KF70,80,LF72,8 0,82..GEN ; (0103- )LF80..MA) |
