LF80

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,408 parts · 260 categories

4,408 items

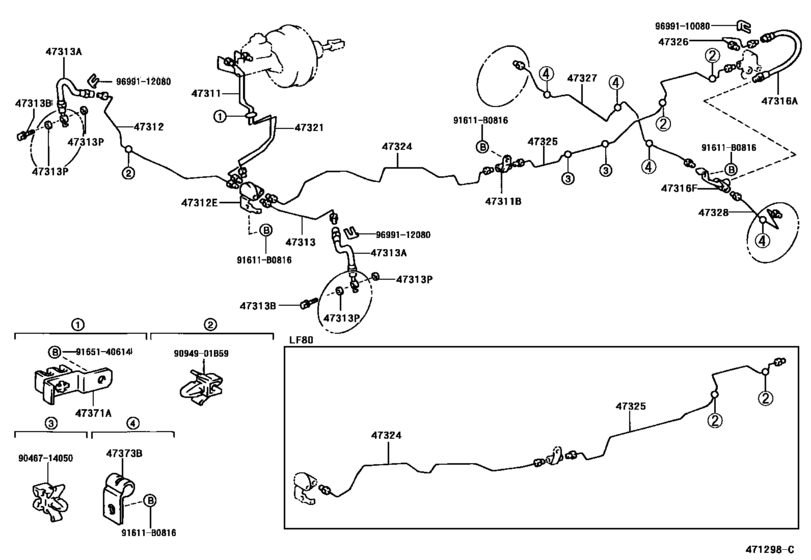

Brake Tube & Clamp ([10.1998 - ] (9810- )PHL) 27

#	OEM	Part name
47311	47311-0B031	Tube, Front Brake, No.1
47311	90412-10165	Way, No.1(For Front Brake Tube)
47312	47312-0B030	Tube, Front Brake, No.2
47312	90904-13047	Way, No.2(For Front Brake Tube)
47313	47313-0B030	Tube, Front Brake, No.3
47313	90947-02827	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47316	90947-02A95	Hose, Flexible(For Rear Brake Tube)
47316	90947-02960	Hose, Flexible(For Rear Brake Tube)
47316	96940-34405	Hose, Flexible(For Rear Brake Tube)
47316	90904-13044	Way, 3(For Rear Brake Tube)
47321	47321-0B032	Tube, Rear Brake, No.1
47321	47321-0B130	Tube, Rear Brake, No.1
47324	47324-0B061	Tube, Rear Brake, No.4
47325	47325-0B061	Tube, Rear Brake, No.5
47326	47326-0B030	Tube, Rear Brake, No.6
47327	47327-0B010	Tube, Rear Brake, No.7
47328	47328-0B010	Tube, Rear Brake, No.8
47371	47371-38020	Clamp, Brake Tube, No.1
47373	90461-10185	Clamp, Brake Tube, No.3
91611	91611-B0816	Bolt
9094901	90949-01B59	Clamp, Height Control Tube, No.2
9046714050	90467-14050	New Genuine Part
9165140614	91651-40614	Bolt
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-0B031	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47312-0B030	Tube, Front Brake, No.2	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47313-0B030	Tube, Front Brake, No.3	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47321-0B032	Tube, Rear Brake, No.1	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47321-0B130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47324-0B061	Tube, Rear Brake, No.4	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47325-0B061	Tube, Rear Brake, No.5	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47326-0B030	Tube, Rear Brake, No.6	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47327-0B010	Tube, Rear Brake, No.7	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47328-0B010	Tube, Rear Brake, No.8	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
47371-38020	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90412-10165	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90461-10185	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90467-14050	New Genuine Part	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90904-13044	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90904-13047	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90947-02827	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90947-02960	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90947-02A95	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
90949-01B59	Clamp, Height Control Tube, No.2	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
91611-B0816	Bolt	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
91651-40614	Bolt	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
96940-34405	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
96991-10080	CLIP	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
96991-12080	Clip	Brake Tube & Clamp ([10.1998 - ] (9810- )PHL)
