Search › Model › LD21

LD21

Toyota BLIZZARD · 1985 · 4,312 parts · 163 categories
LD21 ×

← Back to categories

4,312 items

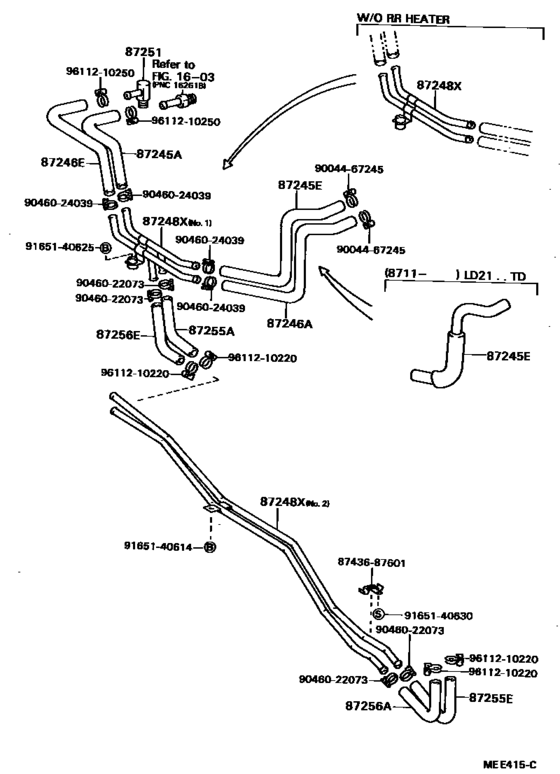

Heating & Air Conditioning - Water Piping ([05.1984 - ] (8405- )) 30
#OEMPart name
87245 87245-87638 Hose, Heater Water, Inlet A
87245 87245-87619 Hose, Heater Water, Inlet E
87245 87245-87656 Hose, Heater Water, Inlet E
87245 87245-87668 Hose, Heater Water, Inlet E
87246 87245-87620 Hose, Heater Water, Outlet A
87246 87245-87657 Hose, Heater Water, Outlet A
87246 87245-87639 Hose, Heater Water, Outlet E
87248 87208-87601 Pipe, Heater Water
87248 87208-87602 Pipe, Heater Water
87248 87208-87603 Pipe, Heater Water
87248 87208-87625 Pipe, Heater Water
87248 87208-87626 Pipe, Heater Water
87251 87251-30200 Union(For Water By-Pass Hose)
87255 87245-87621 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-87658 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-87623 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256 87245-87622 Hose, Rear Heater Water Outlet, E (To Engine)
87256 87245-87659 Hose, Rear Heater Water Outlet, E (To Engine)
8743687601 87436-87601 New Genuine Part
9004467245 90044-67245 Clip(For Water By-Pass Hose No.2)
9004467245 90044-67485 Clip(For Water By-Pass Hose No.2)
9046022073 90460-22073 Clip(For Ventilation Hose No.2)
9046022073 90467-19022 Clip(For Ventilation Hose No.2)
9046024039 90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039 90467-21010 Clip(For Ventilation Hose No.2)
9165140614 91651-40614 Bolt
9165140625 91651-40625 New Genuine Part
9165140630 91651-40630 BOLT
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
