LD20

Toyota BLIZZARD · 1984 · 4,482 parts · 171 categories

4,482 items

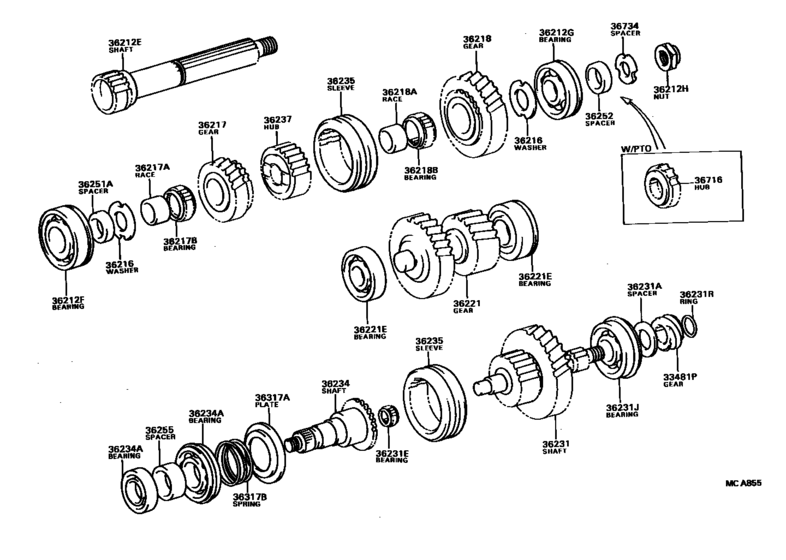

Transfer Gear ([05.1984 - ] (8405- )) 42

#	OEM	Part name
33481	33481-87606	Gear, Speedometer Drive (For Transfer)
33481	33481-87610	Gear, Speedometer Drive (For Transfer)
36212	36212-87602	Shaft, Transfer Input
36212	36212-87605	Gear, Transfer Input
36212	36252-87603	Spacer (For Output Shaft)
36212	36716-87604	Hub, Power Take-Off Clutch
36212	90041-79157	Nut (For Manual Transmission Output Shaft Rear Set)
36212	90043-63115	Bearing, Radial Ball (For Transfer Input Shaft Front)
36212	90043-63066	Bearing, Radial Ball (For Transfer Input Gear)
36212	90041-78018	Nut(For Counter Gear Shaft)
36212	90041-79146	Nut(For Counter Gear Shaft)
36212	90043-63084	Bearing, Radial Ball (For Transfer Input Shaft Front)
36216	36216-87603	Washer, Transfer Input Gear Thrust
36217	36217-87605	Gear, Transfer Low Speed Input
36217	36219-87603	Race, Transfer Input Low Speed Gear Bearing, Inner
36217	90043-64023	Bearing (For Input High Speed Gear)
36217	90043-64077	Bearing (For Input High Speed Gear)
36218	36218-87614	Gear, Transfer Hi Speed Input
36221	36221-87608	Gear, Transfer Idler
36221	90043-63163	Bearing, Radial Ball (For Transfer Idler Gear)
36221	90043-65007	Bearing, Radial Ball (For Transfer Idler Gear)
36221	90043-65019	Bearing, Radial Ball (For Transfer Idler Gear)
36221	97100-06306	Bearing, Radial Ball (For Transfer Idler Gear)
36221	90043-63073	Bearing, Radial Ball (For Transfer Idler Gear)
36231	36203-87603	Shaft, Transfer Output, Rear
36231	36273-87602	Spacer (For Transfer Output Shaft)
36231	90043-64024	Bearing, Needle Roller (For Transfer Output Shaft Front)
36231	90043-63114	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	96711-35030	Ring, O, Distributor Housing
36231	90043-63059	Bearing (For Output Shaft Rear)
36234	36234-87603	Shaft, Transfer Output, Front
36234	97100-06007	Bearing (For Transfer Output Front Shaft)
36234	97153-06208	Bearing (For Transfer Output Front Shaft)
36235	33363-87304	Sleeve, Transmission Hub, No.2
36237	36238-87603	Hub, Transfer Clutch
36251	36251-87602	Spacer, Transfer Input Shaft
36252	36252-87602	Spacer (For Output Shaft)
36255	36255-87601	Spacer, Transfer Output Shaft, No.1
36317	36317-87601	Plate, Front Drive Disengage
36317	90045-01285	Spring, Compression (For Front Drive Disengage Plate)
36716	36716-87603	Hub, Power Take-Off Clutch
36734	36734-87602	Spacer, Transfer Input Shaft, No.3

OEM	Part name	Category
33363-87304	Sleeve, Transmission Hub, No.2	Transfer Gear ([05.1984 - ] (8405- ))
33481-87606	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([05.1984 - ] (8405- ))
33481-87610	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([05.1984 - ] (8405- ))
36203-87603	Shaft, Transfer Output, Rear	Transfer Gear ([05.1984 - ] (8405- ))
36212-87602	Shaft, Transfer Input	Transfer Gear ([05.1984 - ] (8405- ))
36212-87605	Gear, Transfer Input	Transfer Gear ([05.1984 - ] (8405- ))
36216-87603	Washer, Transfer Input Gear Thrust	Transfer Gear ([05.1984 - ] (8405- ))
36217-87605	Gear, Transfer Low Speed Input	Transfer Gear ([05.1984 - ] (8405- ))
36218-87614	Gear, Transfer Hi Speed Input	Transfer Gear ([05.1984 - ] (8405- ))
36219-87603	Race, Transfer Input Low Speed Gear Bearing, Inner	Transfer Gear ([05.1984 - ] (8405- ))
36221-87608	Gear, Transfer Idler	Transfer Gear ([05.1984 - ] (8405- ))
36234-87603	Shaft, Transfer Output, Front	Transfer Gear ([05.1984 - ] (8405- ))
36238-87603	Hub, Transfer Clutch	Transfer Gear ([05.1984 - ] (8405- ))
36251-87602	Spacer, Transfer Input Shaft	Transfer Gear ([05.1984 - ] (8405- ))
36252-87602	Spacer (For Output Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
36252-87603	Spacer (For Output Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
36255-87601	Spacer, Transfer Output Shaft, No.1	Transfer Gear ([05.1984 - ] (8405- ))
36273-87602	Spacer (For Transfer Output Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
36317-87601	Plate, Front Drive Disengage	Transfer Gear ([05.1984 - ] (8405- ))
36716-87603	Hub, Power Take-Off Clutch	Transfer Gear ([05.1984 - ] (8405- ))
36716-87604	Hub, Power Take-Off Clutch	Transfer Gear ([05.1984 - ] (8405- ))
36734-87602	Spacer, Transfer Input Shaft, No.3	Transfer Gear ([05.1984 - ] (8405- ))
90041-78018	Nut(For Counter Gear Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
90041-79146	Nut(For Counter Gear Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
90041-79157	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63059	Bearing (For Output Shaft Rear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63066	Bearing, Radial Ball (For Transfer Input Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63073	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63084	Bearing, Radial Ball (For Transfer Input Shaft Front)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63114	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63115	Bearing, Radial Ball (For Transfer Input Shaft Front)	Transfer Gear ([05.1984 - ] (8405- ))
90043-63163	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-64023	Bearing (For Input High Speed Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-64024	Bearing, Needle Roller (For Transfer Output Shaft Front)	Transfer Gear ([05.1984 - ] (8405- ))
90043-64077	Bearing (For Input High Speed Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-65007	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90043-65019	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([05.1984 - ] (8405- ))
90045-01285	Spring, Compression (For Front Drive Disengage Plate)	Transfer Gear ([05.1984 - ] (8405- ))
96711-35030	Ring, O, Distributor Housing	Transfer Gear ([05.1984 - ] (8405- ))
97100-06007	Bearing (For Transfer Output Front Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
97100-06306	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([05.1984 - ] (8405- ))
97153-06208	Bearing (For Transfer Output Front Shaft)	Transfer Gear ([05.1984 - ] (8405- ))
