LD20

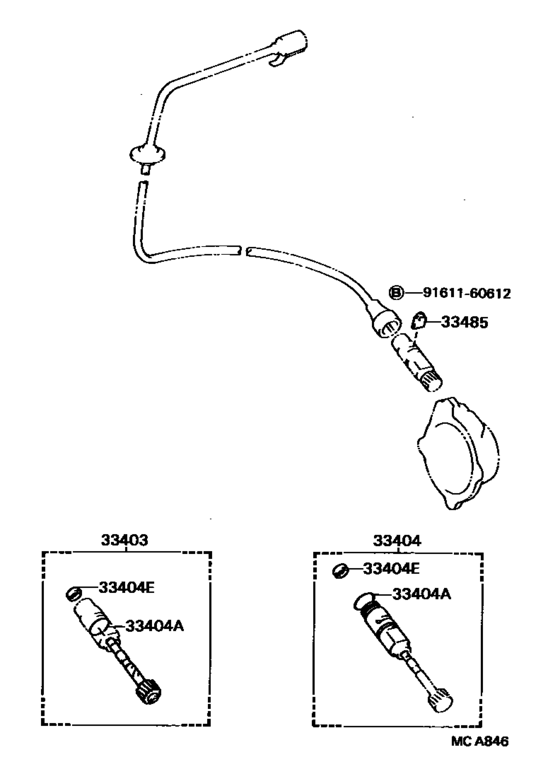

Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) 7
| # | OEM | Part name |
|---|---|---|
| 33403 | 33403-87686 | Gear Sub-Assy, Speedometer Driven (Mtm) |
| 33404 | 33404-87319 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) |
| 33404 | 96711-24020 | Ring O(For Ventilation Hose No.4) |
| 33404 | 90043-12001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) |
| 33485 | 33485-87601 | Plate, Speedometer Sleeve Lock (Mtm) |
| 9161160612 | 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
| 9161160612 | 91611-G0612 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 33403-87686 | Gear Sub-Assy, Speedometer Driven (Mtm) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 33404-87319 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 33485-87601 | Plate, Speedometer Sleeve Lock (Mtm) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 90043-12001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 91611-G0612 | Bolt | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
| 96711-24020 | Ring O(For Ventilation Hose No.4) | Speedometer Driven Gear (Mtm) ([05.1984 - ] (8405- )) |
