Search › Model › LD20

LD20

Toyota BLIZZARD · 1984 · 4,482 parts · 171 categories

4,482 items

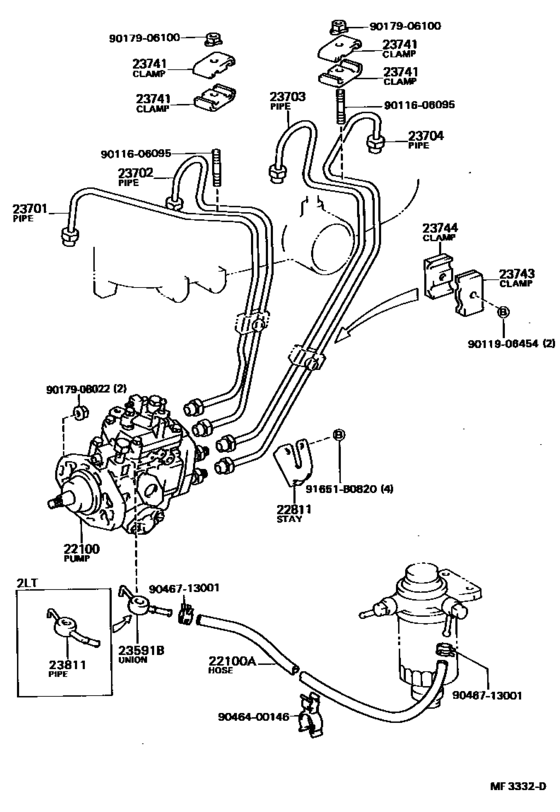

Injection Pump Assembly ([05.1984 - ] (8405- )) 39

#	OEM	Part name
22100	22100-54261	Pump Assy, Injection Or Supply
22100	22100-54262	Pump Assy, Injection Or Supply
22100	82711-24010	Wire, Fuse To Fuse(for Combustion Heater)
22100	22100-54263	Pump Assy, Injection Or Supply
22100	23271-87603	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95332-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95333-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	22100-54310	Pump Assy, Injection Or Supply
22100	22100-54340	Pump Assy, Injection Or Supply
22100	22100-54311	Pump Assy, Injection Or Supply
22100	22100-54341	Pump Assy, Injection Or Supply
22811	22811-54040	Stay, Injection Pump, No.1
22811	22811-54042	Stay, Injection Pump, No.1
22811	22811-54041	Stay, Injection Pump, No.1
23591	23591-54010	Union(For Injection Punp Inlet)
23701	23701-54072	Pipe Sub-Assy, Injection, No.1
23701	23701-54082	Pipe Sub-Assy, Injection, No.1
23702	23702-54071	Pipe Sub-Assy, Injection, No.2
23702	23702-54081	Pipe Sub-Assy, Injection, No.2
23703	23703-54072	Pipe Sub-Assy, Injection, No.3
23703	23703-54082	Pipe Sub-Assy, Injection, No.3
23703	23703-54050	Pipe Sub-Assy, Injection, No.3
23704	23704-54082	Pipe Sub-Assy, Injection, No.4
23704	23704-54072	Pipe Sub-Assy, Injection, No.4
23704	23704-54050	Pipe Sub-Assy, Injection, No.4
23741	23741-56010	Clamp, Injection Pipe, No.1
23743	23741-54010	Clamp, Injection Pipe, No.1
23744	23742-54010	Clamp, Injection Pipe, No.2
23811	23811-54130	Pipe, Fuel(For Fuel Filter To Injection Pump)
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011606095	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
9011906454	90119-06454	Bolt
9017906100	90179-06100	New Genuine Part
9017906100	90179-06204	NUT
9017908022	90179-08022	NUT
9046400146	90464-00146	New Genuine Part
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose

OEM	Part name	Category
22100-54261	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54262	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54263	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54310	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54311	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54340	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22100-54341	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1984 - ] (8405- ))
22811-54040	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
22811-54041	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
22811-54042	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
23271-87603	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([05.1984 - ] (8405- ))
23591-54010	Union(For Injection Punp Inlet)	Injection Pump Assembly ([05.1984 - ] (8405- ))
23701-54072	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
23701-54082	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
23702-54071	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([05.1984 - ] (8405- ))
23702-54081	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([05.1984 - ] (8405- ))
23703-54050	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([05.1984 - ] (8405- ))
23703-54072	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([05.1984 - ] (8405- ))
23703-54082	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([05.1984 - ] (8405- ))
23704-54050	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([05.1984 - ] (8405- ))
23704-54072	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([05.1984 - ] (8405- ))
23704-54082	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([05.1984 - ] (8405- ))
23741-54010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
23741-56010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([05.1984 - ] (8405- ))
23742-54010	Clamp, Injection Pipe, No.2	Injection Pump Assembly ([05.1984 - ] (8405- ))
23811-54130	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([05.1984 - ] (8405- ))
82711-24010	Wire, Fuse To Fuse(for Combustion Heater)	Injection Pump Assembly ([05.1984 - ] (8405- ))
90080-11347	New Genuine Part	Injection Pump Assembly ([05.1984 - ] (8405- ))
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Injection Pump Assembly ([05.1984 - ] (8405- ))
90119-06454	Bolt	Injection Pump Assembly ([05.1984 - ] (8405- ))
90179-06100	New Genuine Part	Injection Pump Assembly ([05.1984 - ] (8405- ))
90179-06204	NUT	Injection Pump Assembly ([05.1984 - ] (8405- ))
90179-08022	NUT	Injection Pump Assembly ([05.1984 - ] (8405- ))
90464-00146	New Genuine Part	Injection Pump Assembly ([05.1984 - ] (8405- ))
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Injection Pump Assembly ([05.1984 - ] (8405- ))
91651-B0820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([05.1984 - ] (8405- ))
95332-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([05.1984 - ] (8405- ))
95333-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([05.1984 - ] (8405- ))
96135-51300	Clamp, Hose	Injection Pump Assembly ([05.1984 - ] (8405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 171
Collected: 2026-08-02
