Search › Model › LD20

LD20

Toyota BLIZZARD · 1984 · 4,482 parts · 171 categories
LD20 ×

← Back to categories

4,482 items

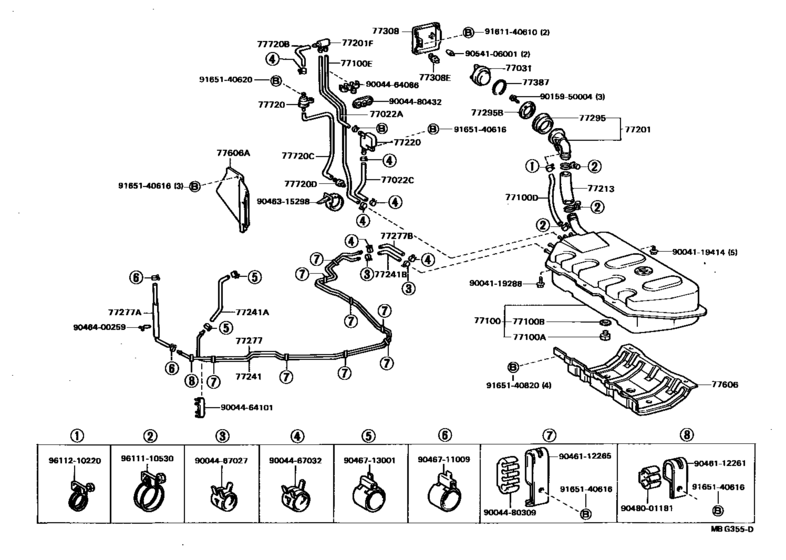

Fuel Tank & Tube ([05.1984 - 02.1990] (8405-9002)) 75
#OEMPart name
77022 90044-45705 Hose, Fuel(For Fuel Evaporative Separator)
77022 90044-45706 Hose, Fuel, No.2(For Fuel Tank)
77022 90044-45703 Hose Or Tube(For Fuel Evaporative Separator)
77031 77310-12100 Cap Assy, Fuel Tank
77100 77100-87619 Tank Assy, Fuel
77100 77213-87607 Hose, Fuel Tank Sub Inlet
77100 77100-87637 Tank Assy, Fuel
77100 77100-87630 Tank Assy, Fuel
77100 90043-41011 Plug (For Front Power Take-Off Drain)
77100 90044-30120 Gasket (For Front Power Take-Off Drain)
77100 90044-45702 Hose, Fuel, No.1(For Fuel Tank)
77100 90044-45704 Hose, Fuel, No.2(For Fuel Tank)
77201 77201-87605 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-87613 Pipe Sub-Assy, Fuel Tank Inlet
77201 90044-13046 Way, 3(For Fuel Tank)
77213 77213-87603 Hose, Fuel Tank Sub Inlet
77213 77213-87606 Hose, Fuel Tank Sub Inlet
77220 77273-87703 Separator Assy, Fuel Evaporative & Check Valve
77241 77251-87614 Tube, Fuel Main, No.1
77241 77251-87618 Tube, Fuel Main, No.1
77241 77251-87623 Tube, Fuel Main, No.1
77241 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 77259-87601 Hose, Fuel, No.2 (For Main Tube, No.1)
77277 77255-87604 Tube, Fuel Return, No.1
77277 77255-87610 Tube, Fuel Return, No.1
77277 77255-87614 Tube, Fuel Return, No.1
77277 23271-87602 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-87603 Hose, Fuel, No.2(For Return Tube, No.1)
77295 77291-12020 Shield, Fuel Tank, Inlet, No.2
77295 77292-12030 Shield, Fuel Tank, Inlet, No.1
77308 77305-87601 Cover Sub-Assy, Fuel Inlet Box
77308 61726-87101 Plate, Fuel Inlet Box
77387 77391-16010 Ring, Fuel Inlet Box
77606 77161-87603 Protector Sub-Assy, Fuel Tank, No.1
77606 77161-87605 Protector Sub-Assy, Fuel Tank, No.1
77606 77277-87601 Protector, Fuel Tank Filler Pipe
77606 77277-87602 Protector, Fuel Tank Filler Pipe
77606 77277-87604 Protector, Fuel Tank Filler Pipe
77720 77720-87609 Valve Sub-Assy, Safety
77720 77720-87610 Valve Sub-Assy, Safety
77720 90044-45753 Hose, Fuel, No.1(For Safety Valve)
77720 90044-45193 Hose, Fuel, No.1(For Safety Valve)
77720 90044-46388 Hose, Fuel, No.2(For Safety Valve)
77720 90044-12033 Way, 2(For Safety Valve)
9004119288 90041-19288 New Genuine Part
9004119414 90041-19414 New Genuine Part
9004464086 90044-64086 New Genuine Part
9004464101 90044-64101 New Genuine Part
9004467027 90044-67027 New Genuine Part
9004467032 90044-67032 New Genuine Part
9004467032 90044-67288 CLIP
9004480309 90044-80309 New Genuine Part
9004480432 90044-80432 New Genuine Part
9015950004 90159-50004 New Genuine Part
9046112261 90461-12261 New Genuine Part
9046112265 90461-12265 New Genuine Part
9046315298 90463-15298 New Genuine Part
9046400259 90464-00259 New Genuine Part
9046400259 90464-00215 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9048001181 90480-01181 New Genuine Part
9054106001 90541-06001 Cushion(For Fuel Inlet Box Cover)
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140620 91651-40620 BOLT
9165140820 91651-40820 Bolt
9611110530 96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
