Search › Model › LD20

LD20

Toyota BLIZZARD · 1984 · 4,482 parts · 171 categories

4,482 items

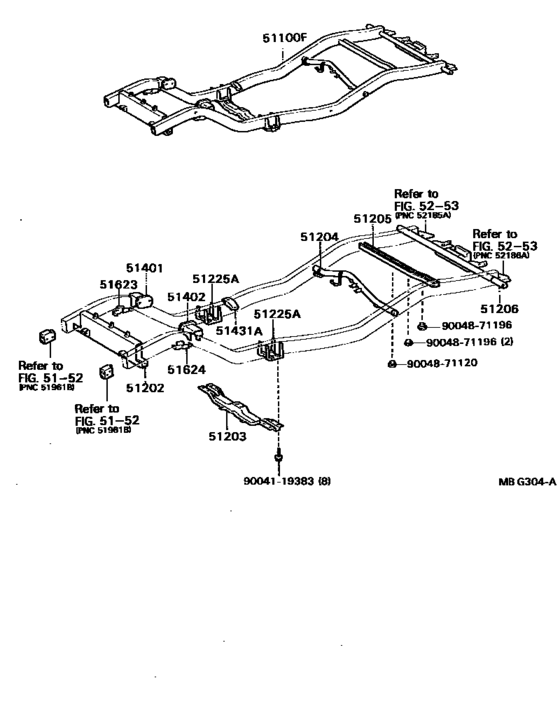

Frame ([05.1984 - 02.1990] (8405-9002)) 21

#	OEM	Part name
51100	51002-87653	Frame Sub-Assy
51100	51002-87660	Frame Sub-Assy
51100	51003-87606	Frame Sub-Assy
51100	51003-87658	Frame Sub-Assy
51202	51201-87603	Crossmember Sub-Assy, Frame, No.1
51203	51202-87602	Crossmember Sub-Assy, Frame, No.2
51204	51203-87609	Crossmember Sub-Assy, Frame, No.3
51205	51204-87603	Crossmember Sub-Assy, Frame, No.4
51205	51204-87605	Crossmember Sub-Assy, Frame, No.4
51206	51205-87602	Crossmember Sub-Assy, Frame, No.5
51206	51205-87608	Crossmember Sub-Assy, Frame, No.5
51206	51205-87607	Crossmember Sub-Assy, Frame, No.5
51225	51225-87603	Bracket, Crossmember, No.2
51401	51401-87608	Bracket Sub-Assy, Engine Front Mounting, Rh
51402	51402-87608	Bracket Sub-Assy, Engine Front Mounting, Lh
51431	51431-87602	Bracket, Engine Rear Support, Rh
51623	51603-87601	Bracket, Front Spring Bound Stopper, Rh
51624	51612-87602	Bracket, Front Spring Bound Stopper, Lh
9004119383	90041-19383	New Genuine Part
9004871120	90048-71120	New Genuine Part
9004871196	90048-71196	New Genuine Part

OEM	Part name	Category
51002-87653	Frame Sub-Assy	Frame ([05.1984 - 02.1990] (8405-9002))
51002-87660	Frame Sub-Assy	Frame ([05.1984 - 02.1990] (8405-9002))
51003-87606	Frame Sub-Assy	Frame ([05.1984 - 02.1990] (8405-9002))
51003-87658	Frame Sub-Assy	Frame ([05.1984 - 02.1990] (8405-9002))
51201-87603	Crossmember Sub-Assy, Frame, No.1	Frame ([05.1984 - 02.1990] (8405-9002))
51202-87602	Crossmember Sub-Assy, Frame, No.2	Frame ([05.1984 - 02.1990] (8405-9002))
51203-87609	Crossmember Sub-Assy, Frame, No.3	Frame ([05.1984 - 02.1990] (8405-9002))
51204-87603	Crossmember Sub-Assy, Frame, No.4	Frame ([05.1984 - 02.1990] (8405-9002))
51204-87605	Crossmember Sub-Assy, Frame, No.4	Frame ([05.1984 - 02.1990] (8405-9002))
51205-87602	Crossmember Sub-Assy, Frame, No.5	Frame ([05.1984 - 02.1990] (8405-9002))
51205-87607	Crossmember Sub-Assy, Frame, No.5	Frame ([05.1984 - 02.1990] (8405-9002))
51205-87608	Crossmember Sub-Assy, Frame, No.5	Frame ([05.1984 - 02.1990] (8405-9002))
51225-87603	Bracket, Crossmember, No.2	Frame ([05.1984 - 02.1990] (8405-9002))
51401-87608	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([05.1984 - 02.1990] (8405-9002))
51402-87608	Bracket Sub-Assy, Engine Front Mounting, Lh	Frame ([05.1984 - 02.1990] (8405-9002))
51431-87602	Bracket, Engine Rear Support, Rh	Frame ([05.1984 - 02.1990] (8405-9002))
51603-87601	Bracket, Front Spring Bound Stopper, Rh	Frame ([05.1984 - 02.1990] (8405-9002))
51612-87602	Bracket, Front Spring Bound Stopper, Lh	Frame ([05.1984 - 02.1990] (8405-9002))
90041-19383	New Genuine Part	Frame ([05.1984 - 02.1990] (8405-9002))
90048-71120	New Genuine Part	Frame ([05.1984 - 02.1990] (8405-9002))
90048-71196	New Genuine Part	Frame ([05.1984 - 02.1990] (8405-9002))
