LD20

Toyota BLIZZARD · 1984 · 4,482 parts · 171 categories
LD20 ×

← Back to categories

4,482 items

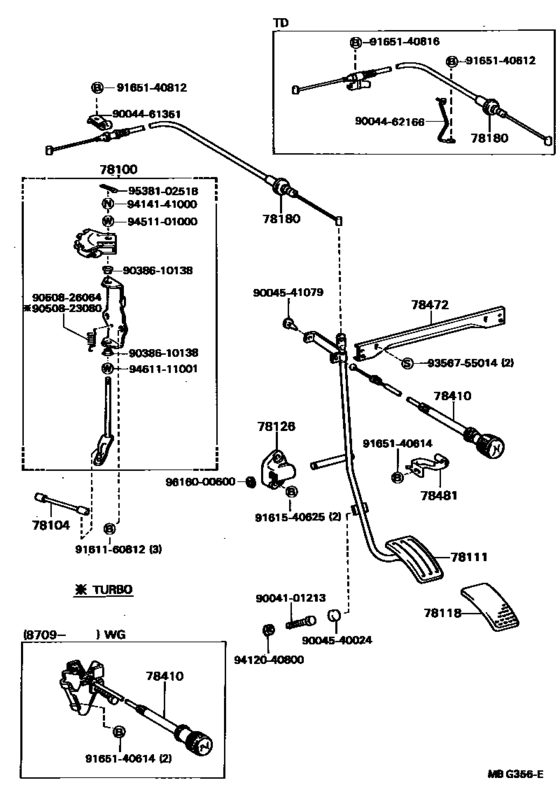

Accelerator Link ([05.1984 - 02.1990] (8405-9002)) 42
#OEMPart name
78100 78100-89104 Link, Accelerator
78100 78100-87604 Link Assy, Accelerator
78104 78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2
78111 78101-87607 Pedal, Accelerator
78111 78101-87611 Pedal, Accelerator
78118 78119-87601 Pad, Accelerator Pedal
78118 78119-95700 Pad, Accelerator Pedal
78126 78124-87204 Bracket, Accelerator Pedal Rod
78126 78124-87601 Bracket, Accelerator Pedal Rod
78180 78180-87624 Wire Assy, Accelerator
78180 78180-87623 Wire Assy, Accelerator
78410 78401-87601 Cable Assy, Throttle Control
78410 78401-87604 Cable Assy, Throttle Control
78472 78472-87601 Support, Throttle Control Cable
78472 78472-87604 Support, Throttle Control Cable
78472 78472-87602 Support, Throttle Control Cable
78481 78481-87602 Clamp, Throttle Wire
9004101213 90041-01213 New Genuine Part
9004461351 90044-61351 New Genuine Part
9004462166 90044-62166 New Genuine Part
9004540024 90045-40024 New Genuine Part
9004541079 90045-41079 New Genuine Part
9038610138 90386-10138 Bush (For Throttle Cam Shaft)
9050823080 90508-23080 Spring, Torsion (For Accelerator Link)
9050826064 90508-26064 New Genuine Part
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161540625 91615-40625 Bolt, W/washer (for Parking Cove & Case)
9161540625 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140614 91651-40614 Bolt
9165140812 91651-40812 New Genuine Part
9165140816 91651-40816 BOLT
9356755014 93567-55014 Direct
9356755014 93568-55014 Screw
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9414141000 94141-41000 NUT
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9538102518 95381-02518 PIN
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
