Search › Model › LD10

LD10

Toyota BLIZZARD · 1980 · 2,686 parts · 134 categories

2,686 items

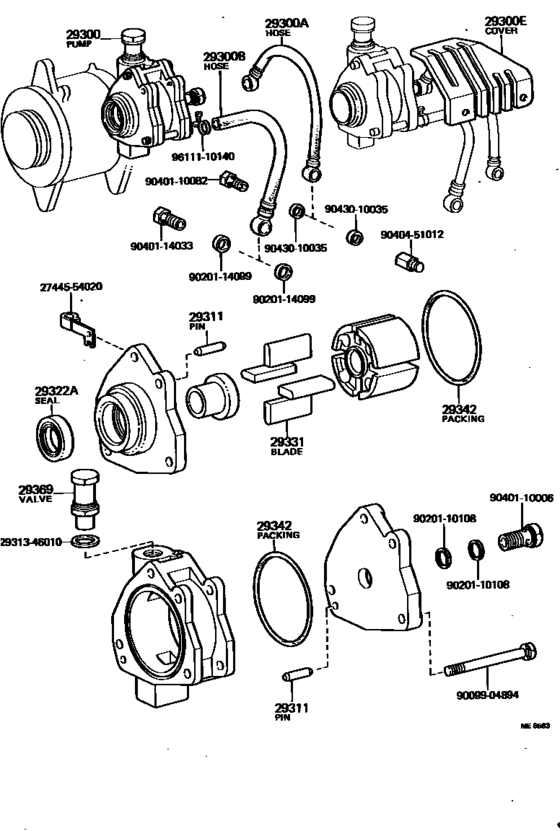

Vacuum Pump ([01.1982 - 10.1982] (8201-8210)) 27

#	OEM	Part name
29300	29300-54021	Pump Assy, Vacuum
29300	29300-54050	Pump Assy, Vacuum
29300	90923-02056	Hose, Vacuum Pump Oil Inlet
29300	90923-02077	Hose, Vacuum Pump Oil Inlet
29300	90923-02052	Hose, Vacuum Pump Oil Outlet
29300	90923-02076	Hose, Vacuum Pump Oil Outlet
29300	27029-54010	Cover, Oil Hose
29311	29311-76010	Pin, Vacuum Pump Dowel, No.1
29311	90099-08082	Pin, Vacuum Pump Dowel, No.1
29322	90099-15017	Seal, Vacuum Pump Oil
29331	29331-56010	Blade, Vacuum Pump, A
29331	29331-56070	Blade, Vacuum Pump, A
29342	96740-02063	Packing, Vacuum Pump
29369	29369-54010	Valve Sub-Assy, Check
29369	29369-56070	Valve Sub-Assy, Check
2744554020	27445-54020	New Genuine Part
2931346010	29313-46010	New Genuine Part
9009904894	90099-04894	New Genuine Part
9020110108	90201-10108	Washer(For Over Flow Nipple)
9020114099	90201-14099	Gasket(For Vacuum Pump Union)
9040110006	90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)
9040110082	90401-10082	Valve, Rocker Shaft Oil Pipe Union
9040114033	90401-14033	Bolt, Union
9040451012	90404-51012	UNION VACCUM HOSE
9043010035	90430-10035	Gasket(For Water Hole)
9611110140	96111-10140	Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110140	96112-10140	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
27029-54010	Cover, Oil Hose	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
27445-54020	New Genuine Part	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29300-54021	Pump Assy, Vacuum	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29300-54050	Pump Assy, Vacuum	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29311-76010	Pin, Vacuum Pump Dowel, No.1	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29313-46010	New Genuine Part	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29331-56010	Blade, Vacuum Pump, A	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29331-56070	Blade, Vacuum Pump, A	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29369-54010	Valve Sub-Assy, Check	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
29369-56070	Valve Sub-Assy, Check	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90099-04894	New Genuine Part	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90099-08082	Pin, Vacuum Pump Dowel, No.1	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90099-15017	Seal, Vacuum Pump Oil	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90201-10108	Washer(For Over Flow Nipple)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90201-14099	Gasket(For Vacuum Pump Union)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90401-10082	Valve, Rocker Shaft Oil Pipe Union	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90401-14033	Bolt, Union	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90404-51012	UNION VACCUM HOSE	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90430-10035	Gasket(For Water Hole)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90923-02052	Hose, Vacuum Pump Oil Outlet	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90923-02056	Hose, Vacuum Pump Oil Inlet	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90923-02076	Hose, Vacuum Pump Oil Outlet	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
90923-02077	Hose, Vacuum Pump Oil Inlet	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
96111-10140	Clamp Or Clip, Hose(For Water By-Pass Hose)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
96112-10140	Clamp Or Clip, Hose(For Water By-Pass Hose)	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
96740-02063	Packing, Vacuum Pump	Vacuum Pump ([01.1982 - 10.1982] (8201-8210))
