Search › Model › LD10

LD10

Toyota BLIZZARD · 1980 · 2,686 parts · 134 categories

2,686 items

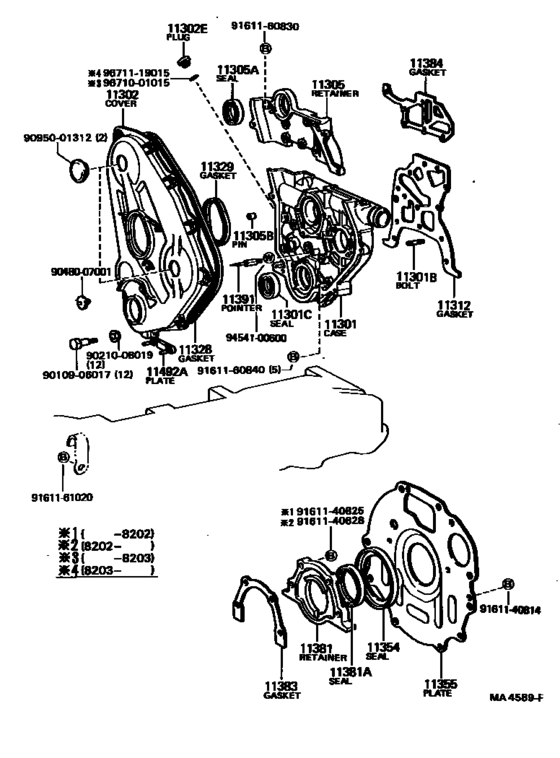

Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- )) 53

#	OEM	Part name
11301	11311-54021	Case Sub-Assy, Timing Gear
11301	15149-54030	Gasket(For Oil Strainer)
11301	11320-54022	Case Assy, Timing Gear
11301	15104-54022	Strainer Sub-Assy, Oil
11301	15104-54032	Strainer Sub-Assy, Oil
11301	15104-54052	Strainer Sub-Assy, Oil
11301	90179-08040	Nut, Cap(For Cylinder Head Cover)
11301	92122-40816	Bolt, Stud(For Oil Strainer)
11301	15104-54044	Strainer Sub-Assy, Oil
11301	11311-54022	Case Sub-Assy, Timing Gear
11301	92132-60828	Bolt,stud(For Timing Gear Case)
11301	90311-42001	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	11321-54013	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-54014	Cover Sub-Assy, Timing Chain Or Belt
11302	90341-18004	Plug, Straight(For Timing Gear Cover)
11305	11382-54010	Retainer, Oil Seal, No.2
11305	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
11312	11312-54013	Gasket, Front End Plate
11312	11312-54030	Gasket, Front End Plate
11328	11328-54010	Gasket, Timing Gear Or Chain Cover
11329	11329-54011	Gasket, Timing Gear Rear Cover
11354	11354-54010	Seal, Flywheel Housing Dust
11355	11355-54050	Plate, Rear End
11381	11381-54010	Retainer, Engine Rear Oil Seal
11381	90311-85001	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11381	90311-85003	Seal, Engine Rear Oil
11383	11383-54010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-54030	Gasket, Engine Rear Oil Seal Retainer
11384	11384-54010	Gasket, Oil Seal Retainer, No.2
11384	11384-54011	Gasket, Oil Seal Retainer, No.2
11391	11391-54010	Pointer, Timing
11492	11492-54010	Plate, Water Seal
9010906017	90109-06017	BOLT
9021008019	90210-08019	WASHER
9021008019	90080-21002	WASHER
9048007001	90480-07001	New Genuine Part
9095001312	90950-01312	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140825	91611-40825	Bolt(For Clutch Release Cylinder Setting)
9161140825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161140828	91611-40828	Bolt(For Clutch Release Cylinder Setting)
9161140828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9161160840	91611-60840	BOLT
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9454100600	94541-00600	New Genuine Part
9671001015	96710-01015	Ring, O(For Power Steering Pump Tight Plug)
9671001015	96711-19015	Ring, O(For Power Steering Pump Tight Plug)

OEM	Part name	Category
11311-54021	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11311-54022	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11312-54013	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11312-54030	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11320-54022	Case Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11321-54013	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11321-54014	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11328-54010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11329-54011	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11354-54010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11355-54050	Plate, Rear End	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11381-54010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11382-54010	Retainer, Oil Seal, No.2	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11383-54010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11383-54030	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11384-54010	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11384-54011	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11391-54010	Pointer, Timing	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
11492-54010	Plate, Water Seal	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
15104-54022	Strainer Sub-Assy, Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
15104-54032	Strainer Sub-Assy, Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
15104-54044	Strainer Sub-Assy, Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
15104-54052	Strainer Sub-Assy, Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
15149-54030	Gasket(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90109-06017	BOLT	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90179-08040	Nut, Cap(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-42001	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-85001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-85003	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90341-18004	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90480-07001	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
90950-01312	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-40828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-60814	Bolt	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-60840	BOLT	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
92122-40816	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
92132-60828	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
94541-00600	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
96710-01015	Ring, O(For Power Steering Pump Tight Plug)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
96711-19015	Ring, O(For Power Steering Pump Tight Plug)	Timing Gear Cover & Rear End Plate ([01.1982 - ] (8201- ))
