LD10

Toyota BLIZZARD · 1980 · 2,686 parts · 134 categories
LD10 ×

← Back to categories

2,686 items

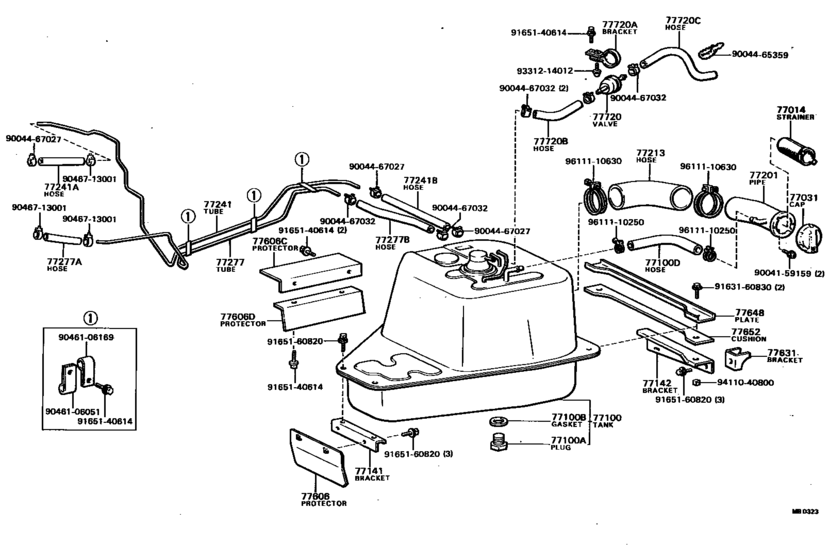

Fuel Tank & Tube ([01.1982 - ] (8201- )) 51
#OEMPart name
77014 77014-60011 Strainer Sub-Assy, Fuel
77014 77672-60040 Strainer Sub-Assy, Fuel
77031 77301-87601 Cap Assy, Fuel Tank
77100 77100-87618 Tank Assy, Fuel
77100 90043-41011 Plug (For Front Power Take-Off Drain)
77100 90044-30120 Gasket (For Front Power Take-Off Drain)
77100 90044-45437 Hose, Fuel, No.1(For Fuel Tank)
77141 77141-87602 Bracket, Fuel Tank Mounting, Front
77142 77142-87602 Bracket, Fuel Tank Mounting, Rear
77201 77201-87604 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-87602 Hose, Fuel Tank Sub Inlet
77241 77251-87605 Tube, Fuel Main, No.1
77241 77251-87608 Tube, Fuel Main, No.1
77241 77251-87609 Tube, Fuel Main, No.1
77241 90044-45564 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 90044-45424 Hose, Fuel, No.2 (For Main Tube, No.1)
77277 77255-87601 Tube, Fuel Return, No.1
77277 95332-06022 Hose, Fuel
77277 95333-06030 Hose, Fuel
77277 95332-06030 Hose(For Carburetor)
77277 90044-45454 Hose, Fuel, No.2(For Return Tube, No.1)
77606 51494-87603 Protector Sub-Assy, Fuel Tank, No.1
77606 51499-87604 Protector, Fuel Tank, No.2
77606 51497-87601 Protector, Fuel Tank, No.3
77631 77631-87602 Bracket, Fuel Tank, No.1
77648 77648-87603 Plate, Fuel Tank Set, Rear
77652 77651-87602 Cushion, Fuel Tank, No.1
77720 77710-87603 Valve Sub-Assy, Safety
77720 77731-87602 Bracket, Safety Valve
77720 90044-45193 Hose, Fuel, No.1(For Safety Valve)
77720 90044-45204 Hose, Fuel, No.2(For Safety Valve)
9004159159 90041-59159 New Genuine Part
9004465359 90044-65359 New Genuine Part
9004467027 90044-67027 New Genuine Part
9004467032 90044-67032 New Genuine Part
9004467032 90044-67288 CLIP
9046106051 90461-06051 New Genuine Part
9046106169 90461-06169 New Genuine Part
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9163160830 91631-60830 New Genuine Part
9163160830 91631-G0830 BOLT WWASHER
9165140614 91651-40614 Bolt
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9331214012 93312-14012 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9611110250 96111-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611110250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611110630 96111-10630 Clamp, Hose
