Search › Model › LD10

LD10

Toyota BLIZZARD · 1980 · 2,686 parts · 134 categories

2,686 items

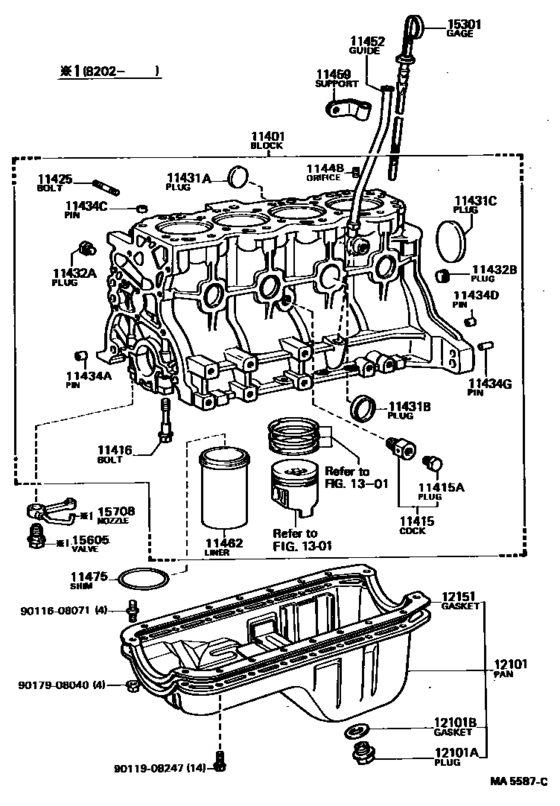

Cylinder Block ([01.1982 - 04.1983] (8201-8304)) 45

#	OEM	Part name
11401	11401-59106	Block Sub-Assy, Cylinder
11401	11401-59196	Block Sub-Assy, Cylinder
11401	11401-59107	Block Sub-Assy, Cylinder
11401	11401-59185	Block Sub-Assy, Cylinder
11401	11401-59235	Block Sub-Assy, Cylinder
11401	11401-59236	Block Sub-Assy, Cylinder
11415	96431-03833	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-23814	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02061	Bolt(For Cylinder Head Set)
11425	90116-08053	Bolt, Stud(For Oil Filter)
11425	90116-08157	Bolt, Stud(For Oil Filter)
11431	96411-42500	Plug, Tight, No.1
11431	96411-43500	Plug, Tight, No.1
11431	96411-45000	Plug, Tight, No.1(For Cam Housing)
11432	90345-51006	Plug, W/head Taper Screw, No.2
11432	90345-51025	Plug, W/head Taper Screw, No.2
11432	90344-53002	Plug, W/head Taper Screw, No.1
11432	90344-53011	Plug, W/head Taper Screw, No.1
11434	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
11434	90253-15005	Pin, Ring(For Crankshaft Bearing Cap Set)
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11448	11448-54010	Orifice, Cylinder Block Oil
11448	11448-54020	Orifice, Cylinder Block Oil
11452	11452-54021	Guide, Oil Level Gage
11459	90461-10270	Support, Oil Level Gage Guide
11462	11461-54010	Liner, Cylinder
11475	11475-54010	Shim, Cylinder Liner
11475	11476-54010	Shim, Cylinder Liner
12101	12101-59125	Pan Sub-Assy, Oil
12101	90033-41020	Plug(For Oil Pan Drain)
12101	12151-54020	Gasket, Oil Pan
12101	90430-18023	Gasket(For Oil Pan)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	12101-54054	Pan Sub-assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-18089	Plug(For Oil Pan Drain)
12101	90430-18244	Gasket(For Oil Pan Drain Plug)
15301	15301-54030	Gage Sub-Assy, Oil Level
15605	15605-54010	Valve Sub-Assy, Oil Check
15708	15708-54010	Nozzle Sub-Assy, Oil, No.1
9011608071	90116-08071	New Genuine Part
9011608071	90116-08279	BOLT STUD
9011908247	90119-08247	Bolt(For Manual Transmission Oil Pan Setting)
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11401-59106	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11401-59107	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11401-59185	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11401-59196	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11401-59235	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11401-59236	Block Sub-Assy, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11448-54010	Orifice, Cylinder Block Oil	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11448-54020	Orifice, Cylinder Block Oil	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11452-54021	Guide, Oil Level Gage	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11461-54010	Liner, Cylinder	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11475-54010	Shim, Cylinder Liner	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
11476-54010	Shim, Cylinder Liner	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
12101-54054	Pan Sub-assy, Oil	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
12101-59125	Pan Sub-Assy, Oil	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
12151-54020	Gasket, Oil Pan	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
15301-54030	Gage Sub-Assy, Oil Level	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
15605-54010	Valve Sub-Assy, Oil Check	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
15708-54010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90116-08053	Bolt, Stud(For Oil Filter)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90116-08071	New Genuine Part	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90116-08157	Bolt, Stud(For Oil Filter)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90116-08279	BOLT STUD	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90119-08247	Bolt(For Manual Transmission Oil Pan Setting)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90179-08040	Nut, Cap(For Cylinder Head Cover)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90253-15005	Pin, Ring(For Crankshaft Bearing Cap Set)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90341-18089	Plug(For Oil Pan Drain)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90344-53002	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90344-53011	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90345-51006	Plug, W/head Taper Screw, No.2	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90345-51025	Plug, W/head Taper Screw, No.2	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90430-18023	Gasket(For Oil Pan)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90430-18244	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90461-10270	Support, Oil Level Gage Guide	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
90910-02061	Bolt(For Cylinder Head Set)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96411-42500	Plug, Tight, No.1	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96411-43500	Plug, Tight, No.1	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96411-45000	Plug, Tight, No.1(For Cam Housing)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96431-03833	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96431-23814	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))
96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([01.1982 - 04.1983] (8201-8304))

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 134
Collected: 2026-08-02
