LAN50

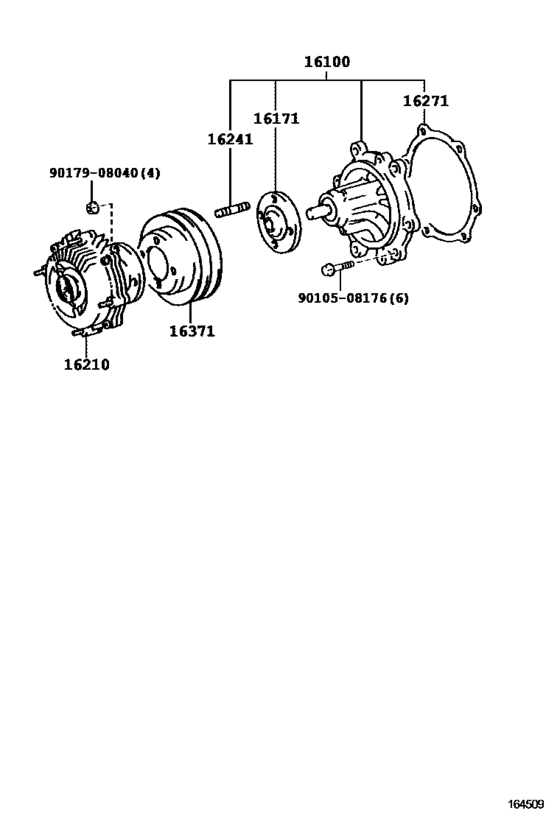

Water Pump ([08.2011 - ] (1108- )5LE) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-59257 | Pump Assy, Engine Water |
| 16171 | 16171-75020 | Seat, Water Pump Pulley |
| 16210 | 16210-54230 | Coupling Assy, Fluid |
| 16241 | 92122-80818 | Bolt, Stud(For Water Pump Pulley Seat) |
| 16271 | 16271-54030 | Gasket, Water Pump |
| 16371 | 16371-05010 | Pulley, Fan |
| 16371 | 16371-54030 | Pulley, Fan |
| 9010508176 | 90105-08176 | BOLT |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 16100-59257 | Pump Assy, Engine Water | Water Pump ([08.2011 - ] (1108- )5LE) |
| 16171-75020 | Seat, Water Pump Pulley | Water Pump ([08.2011 - ] (1108- )5LE) |
| 16210-54230 | Coupling Assy, Fluid | Water Pump ([08.2011 - ] (1108- )5LE) |
| 16271-54030 | Gasket, Water Pump | Water Pump ([08.2011 - ] (1108- )5LE) |
| 16371-05010 | Pulley, Fan | Water Pump ([08.2011 - ] (1108- )5LE) |
| 16371-54030 | Pulley, Fan | Water Pump ([08.2011 - ] (1108- )5LE) |
| 90105-08176 | BOLT | Water Pump ([08.2011 - ] (1108- )5LE) |
| 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Water Pump ([08.2011 - ] (1108- )5LE) |
| 92122-80818 | Bolt, Stud(For Water Pump Pulley Seat) | Water Pump ([08.2011 - ] (1108- )5LE) |
