Search › Model › LAN50

LAN50

Toyota FORTUNER · 2006 · 4,065 parts · 231 categories

4,065 items

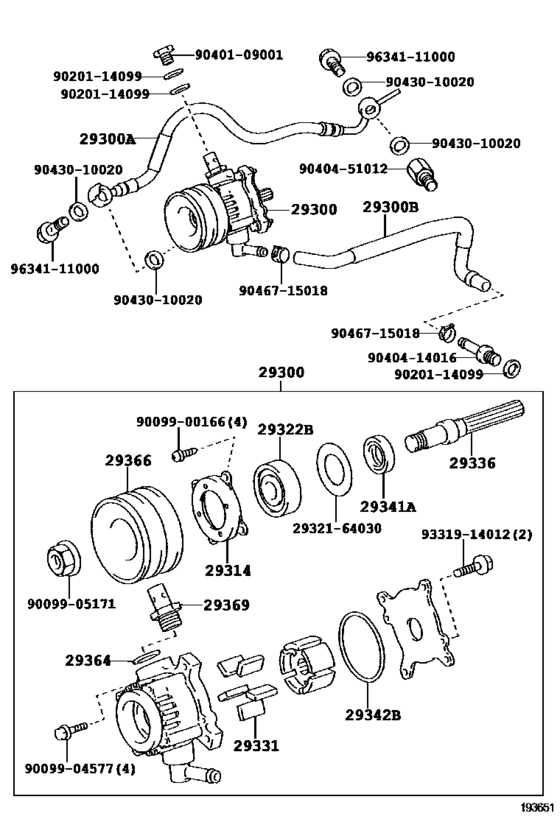

Vacuum Pump ([08.2011 - ] (1108- )5LE) 25

#	OEM	Part name
29300	29300-54180	Pump Assy, Vacuum
29300	90923-02118	Hose, Vacuum Pump Oil Inlet
29300	29611-54050	Hose, Vacuum Pump Oil Outlet
29314	29314-64030	Ring, Stop
29322	90099-10227	Bearing(For Alternator Drive End Frame) - VACUUM PUMP
29331	29331-54130	Blade, Vacuum Pump, A
29336	29336-64031	Shaft, Vacuum Pump
29341	29341-64030	Seal, Vacuum Pump Oil
29342	29342-64030	Packing, Vacuum Pump
29364	29364-66010	Washer, Vacuum Pump
29366	29366-54110	Pulley, Vacuum Pump
29369	29369-64030	Valve Sub-Assy, Check
2932164030	29321-64030	Ring, Oil Seal Stop, Vacuum Pump
9009900166	90099-00166	New Genuine Part
9009904577	90099-04577	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9020114099	90201-14099	Gasket(For Vacuum Pump Union)
9040109001	90401-09001	Bolt, Union(For Vacuum Pump Union)
9040109001	90401-09003	Bolt, Union(For Vacuum Pump Union)
9040414016	90404-14016	New Genuine Part
9040451012	90404-51012	UNION VACCUM HOSE
9043010020	90430-10020	GASKETROUND TYPE
9046715018	90467-15018	Clamp Or Crip, Hose
9331914012	93319-14012	New Genuine Part
9634111000	96341-11000	Bolt, Union(For Turbo Oil Inlet Pipe)

OEM	Part name	Category
29300-54180	Pump Assy, Vacuum	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29314-64030	Ring, Stop	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29321-64030	Ring, Oil Seal Stop, Vacuum Pump	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29331-54130	Blade, Vacuum Pump, A	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29336-64031	Shaft, Vacuum Pump	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29341-64030	Seal, Vacuum Pump Oil	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29342-64030	Packing, Vacuum Pump	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29364-66010	Washer, Vacuum Pump	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29366-54110	Pulley, Vacuum Pump	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29369-64030	Valve Sub-Assy, Check	Vacuum Pump ([08.2011 - ] (1108- )5LE)
29611-54050	Hose, Vacuum Pump Oil Outlet	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90099-00166	New Genuine Part	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90099-04577	New Genuine Part	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90099-05171	Nut(For Alternator Pulley)	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90099-10227	Bearing(For Alternator Drive End Frame) - VACUUM PUMP	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90201-14099	Gasket(For Vacuum Pump Union)	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90401-09001	Bolt, Union(For Vacuum Pump Union)	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90401-09003	Bolt, Union(For Vacuum Pump Union)	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90404-14016	New Genuine Part	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90404-51012	UNION VACCUM HOSE	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90430-10020	GASKETROUND TYPE	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90467-15018	Clamp Or Crip, Hose	Vacuum Pump ([08.2011 - ] (1108- )5LE)
90923-02118	Hose, Vacuum Pump Oil Inlet	Vacuum Pump ([08.2011 - ] (1108- )5LE)
93319-14012	New Genuine Part	Vacuum Pump ([08.2011 - ] (1108- )5LE)
96341-11000	Bolt, Union(For Turbo Oil Inlet Pipe)	Vacuum Pump ([08.2011 - ] (1108- )5LE)

Source: Public OEM parts-catalog data
