| 16261-05030 |
Hose, Water By-Pass |

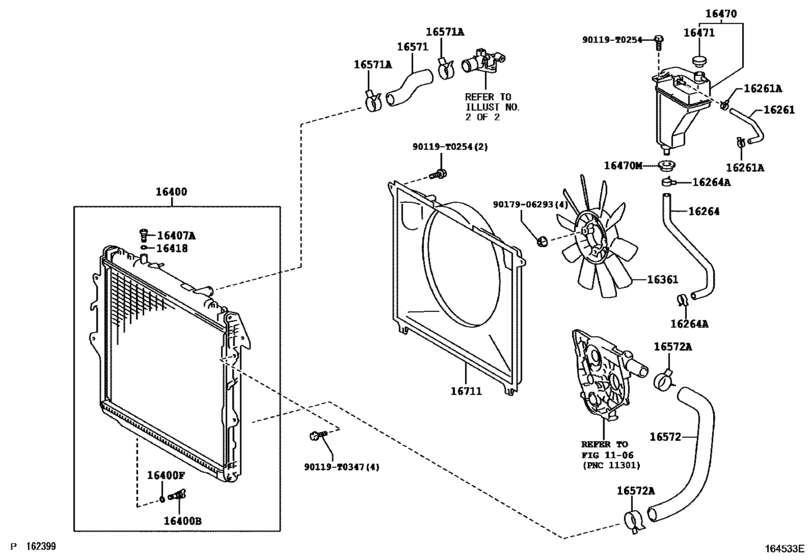

Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16264-0L010 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16331-54202 |
Outlet, Water |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16333-54280 |
Housing, Water Outlet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16340-54040 |
Thermostat |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16341-05020 |
Gasket, Water Outlet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16341-35010 |
Gasket, Water Outlet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16343-54040 |
Gasket, Water Outlet Housing |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16361-54131 |
Fan |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16381-54121 |
Bar, Fan Belt Adjusting |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16400-05160 |
Radiator Assy |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16401-30011 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16401-30012 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16401-30013 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16407-67240 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16417-0D430 |
Cock Sub-Assy, Radiator Drain - RADIATOR DRAIN COCK |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16418-0D310 |
Packing |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16470-05070 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16470-05071 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16470-05072 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16475-28140 |
Cap Sub-Assy, Radiator Reserve Tank |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16492-0D430 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16571-05070 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16572-05060 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 16711-05060 |
Shroud, Fan |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 87251-89113 |
Union(For Water By-Pass Hose) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90119-08694 |
BOLT |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90119-12224 |
BOLT WWASHER |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90119-T0254 |
New Genuine Part |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90119-T0347 |
BOLT WWASHER |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90179-06293 |
NUT |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0011 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0012 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0015 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0024 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0028 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0030 |
Clamp Or Clip(For Water By-Pass Hose No.2) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0031 |
Clamp Or Clip(For Water By-Pass Hose No.2) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0033 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90466-T0046 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 90480-T0004 |
Grommet |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
| 91611-G0820 |
Bolt |
Radiator & Water Outlet ([08.2011 - ] (1108- )5LE) |
