LAN50

Toyota FORTUNER · 2006 · 4,065 parts · 231 categories

4,065 items

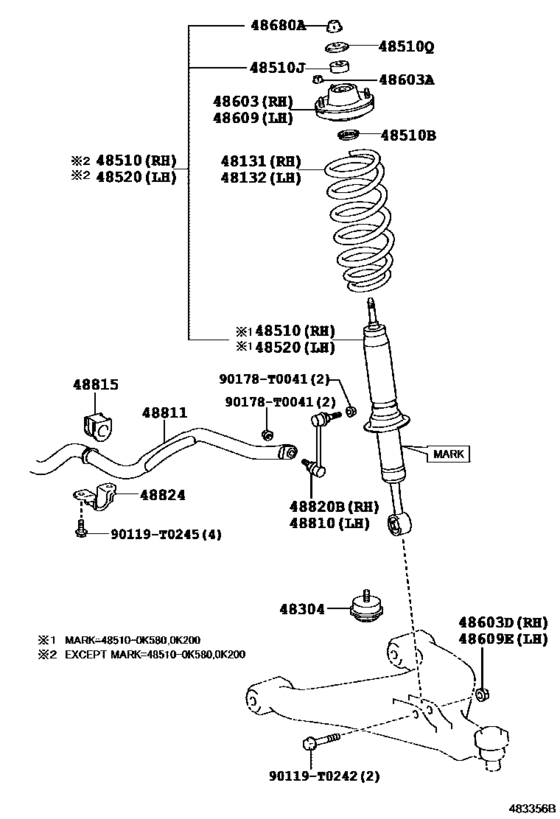

Front Spring & Shock Absorber ([07.2011 - ] (1107- )) 22

#	OEM	Part name
48131	48131-0KA70	Spring, Front Coil, Rh
48304	48304-0K040	Bumper Sub-Assy, Front Spring, No.1
48304	48304-0K041	Bumper Sub-Assy, Front Spring, No.1
48510	48510-0K580	Absorber Assy, Shock, Front Rh
48510	90948-T2003	Retainer, Cushion, No.1(For Front Shock Absorber)
48510	90948-T1001	Cushion, Front Shock Absorber, No.1
48510	90948-T2004	Retainer, Cushion, No.3(For Front Shock Absorber)
48603	48609-0K040	Support Sub-Assy, Front Suspension
48603	90178-T0050	Nut(For Front Suspension Support)
48603	90178-T0048	Nut(For Front Support To Front Shock Absorber Rh)
48680	90177-T0015	Nut(For Front Support To Front Shock Absorber)
48680	94188-01241	Nut(For Front Support To Front Shock Absorber)
48810	48810-0K010	Link Assy, Front Stabilizer, Lh
48810	48810-0K011	Link Assy, Front Stabilizer, Lh
48811	48811-0K100	Bar, Stabilizer, Front
48815	48815-0K010	Bush, Front Stabilizer Bar, No.1
48820	48820-0K030	Link Assy, Front Stabilizer, Rh
48824	48824-0K010	Bracket, Stabilizer, Front
48824	48824-KK030	48824KK030
90119	90119-T0242	BOLT WWASHER
90119	90119-T0245	BOLT WWASHER
90178	90178-T0041	NUT FLANGE

OEM	Part name	Category
48131-0KA70	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48304-0K040	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48304-0K041	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48510-0K580	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48609-0K040	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48810-0K010	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48810-0K011	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48811-0K100	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48815-0K010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48820-0K030	Link Assy, Front Stabilizer, Rh	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48824-0K010	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
48824-KK030	48824KK030	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90119-T0242	BOLT WWASHER	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90119-T0245	BOLT WWASHER	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90177-T0015	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90178-T0041	NUT FLANGE	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90178-T0048	Nut(For Front Support To Front Shock Absorber Rh)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90178-T0050	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90948-T1001	Cushion, Front Shock Absorber, No.1	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90948-T2003	Retainer, Cushion, No.1(For Front Shock Absorber)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
90948-T2004	Retainer, Cushion, No.3(For Front Shock Absorber)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
94188-01241	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([07.2011 - ] (1107- ))
