Search › Model › LAN50

LAN50

Toyota FORTUNER · 2006 · 4,065 parts · 231 categories

4,065 items

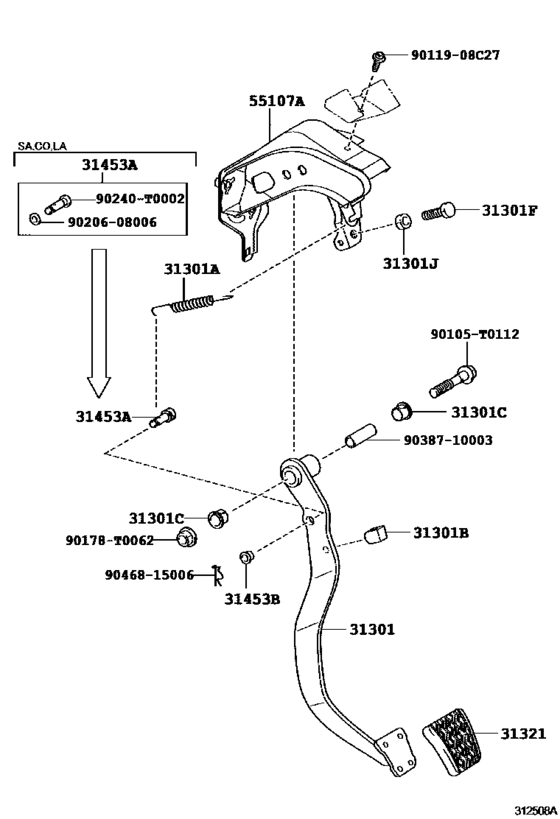

Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F) 20

#	OEM	Part name
31301	31301-0K070	Pedal Sub-Assy, Clutch
31301	90507-T0001	Spring(For Clutch Pedal)
31301	90541-T0005	Cushion, No.1(For Clutch Pedal)
31301	90386-13015	Bush(For Clutch Pedal)
31301	90101-10369	Bolt(For Clutch Pedal Stopper)
31301	90101-T0005	Bolt(For Clutch Pedal Stopper)
31301	90170-T0011	Nut(For Clutch Pedal Stopper)
31301	31301-0K050	Pedal Sub-Assy, Clutch
31301	90541-T0004	Cushion, No.1(For Clutch Pedal)
31321	31321-52010	Pad, Brake Pedal
31453	47148-0K011	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453	90386-08002	Bush(For Clutch Pedal Over Center Spring Pin)
55107	55107-0K021	Support Sub-Assy, Clutch Pedal
90105	90105-T0112	Shaft, Clutch Pedal
90178	90178-T0062	NUT FLANGE
90240	90240-T0002	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
9011908	90119-08C27	BOLT WWASHER
9020608006	90206-08006	New Genuine Part
9038710003	90387-10003	Collar, Clutch Pedal Shaft
9046815006	90468-15006	New Genuine Part

OEM	Part name	Category
31301-0K050	Pedal Sub-Assy, Clutch	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
31301-0K070	Pedal Sub-Assy, Clutch	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
31321-52010	Pad, Brake Pedal	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
47148-0K011	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
55107-0K021	Support Sub-Assy, Clutch Pedal	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90101-10369	Bolt(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90101-T0005	Bolt(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90105-T0112	Shaft, Clutch Pedal	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90119-08C27	BOLT WWASHER	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90170-T0011	Nut(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90178-T0062	NUT FLANGE	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90206-08006	New Genuine Part	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90240-T0002	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90386-08002	Bush(For Clutch Pedal Over Center Spring Pin)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90386-13015	Bush(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90387-10003	Collar, Clutch Pedal Shaft	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90468-15006	New Genuine Part	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90507-T0001	Spring(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90541-T0004	Cushion, No.1(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)
90541-T0005	Cushion, No.1(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )LAN50,TGN51,61..5F)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 231
Collected: 2026-08-03
