| 31321-52010 |
Pad, Brake Pedal |

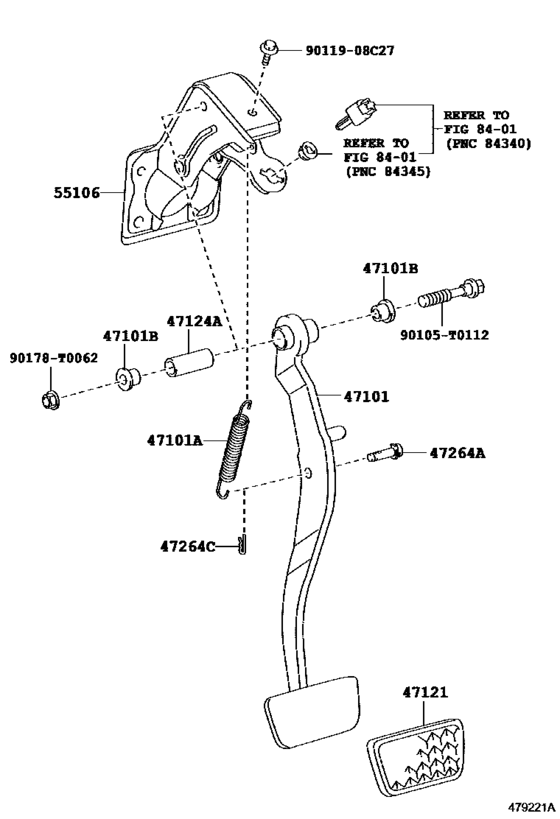

Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 47101-0K040 |
Pedal Sub-Assy, Brake |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 47101-0K050 |
Pedal Sub-Assy, Brake |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 47101-0K360 |
Pedal Sub-Assy, Brake |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 47148-35010 |
Pin(For Brake Master Cylinder Push Rod) |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 55106-0K011 |
Support Sub-Assy, Brake Pedal |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90105-T0112 |
Shaft, Clutch Pedal |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90119-08C27 |
BOLT WWASHER |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90178-T0062 |
NUT FLANGE |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90387-10003 |
Collar, Clutch Pedal Shaft |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90468-16012 |
Pin, Sub Seat Cushion Pin |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
| 90507-T0002 |
Spring(For Brake Pedal Return) |
Brake Pedal & Bracket ([07.2011 - ] W/O(VSC) (1107- )KUN51..DLX ; (1107- )LAN50,TGN51 ; (1107- )KUN60..5F,5FC ; (1107- )KUN51..LHD..S A ; (1107- )KUN60..4FC..SR) |
