LAN50

Toyota FORTUNER · 2006 · 4,065 parts · 231 categories

← Back to categories

4,065 items

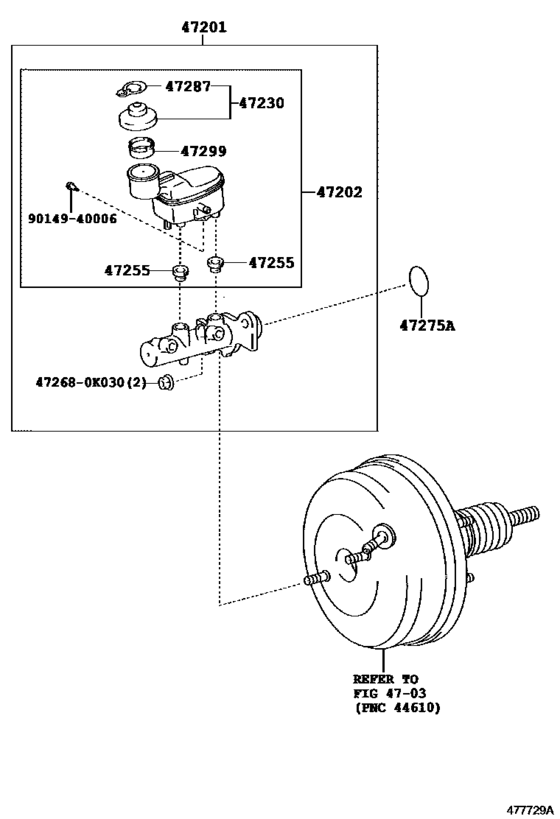

Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA) 10

#	OEM	Part name
47201	47201-09230	Cylinder Sub-Assy, Brake Master
47202	47220-09080	Reservoir Sub-Assy, Brake Master Cylinder
47230	47230-0K010	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-0D221	Cap Assy, Brake Master Cylinder Reservoir Filler
47255	47255-16010	Grommet, Master Cylinder Reservoir
47275	47275-02010	Seal, Master Cylinder - BRAKE MASTER CYLINDER
47287	47287-20010	Label, Brake Fluid Information
47299	47299-0K010	Strainer, Brake Master Cylinder Reservoir
472680	47268-0K030	Nut, Brake Master Cylinder
9014940006	90149-40006	Bolt

OEM	Part name	Category
47201-09230	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47220-09080	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47230-0D221	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47230-0K010	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47255-16010	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47268-0K030	Nut, Brake Master Cylinder	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47275-02010	Seal, Master Cylinder - BRAKE MASTER CYLINDER	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47287-20010	Label, Brake Fluid Information	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
47299-0K010	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
90149-40006	Bolt	Brake Master Cylinder ([07.2011 - ] (1107- )LAN50..RHD ; (1107- )KUN51..DLX ; (1107- )KUN61..4FC..SA ; (1107- )TGN51..4FC..C O ; (1107- )TGN51..5F..CO,SA)
