Search › Model › LAN35
LAN35

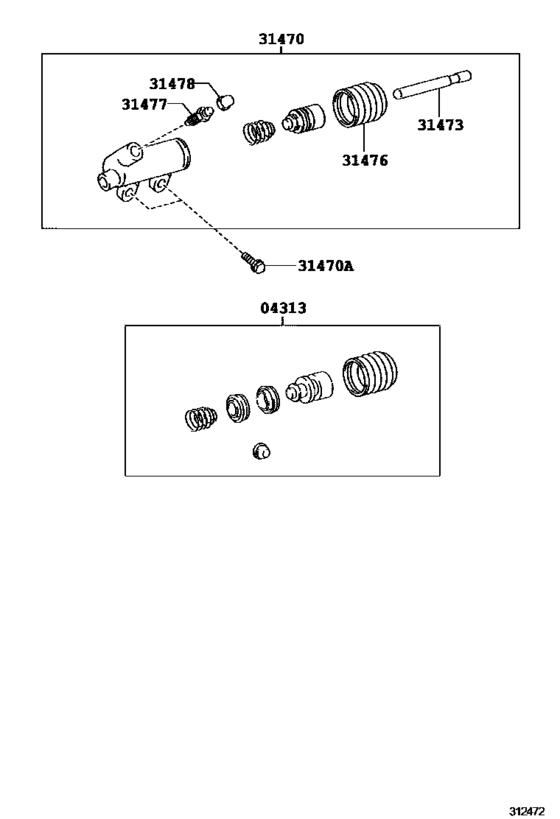

Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) 8
| # | OEM | Part name |
|---|---|---|
| 4313 | 04313-0K050 | Cylinder Kit, Clutch Release |
| 31470 | 31470-0K010 | Cylinder Assy, Clutch Release |
| 31470 | 31470-0K150 | Cylinder Assy, Clutch Release |
| 31470 | 90119-T0221 | Bolt(For Clutch Release Cylinder Setting) |
| 31473 | 31473-0K010 | Rod, Clutch Release Cylinder Push, No.1 |
| 31476 | 31476-04010 | Boot, Clutch Release Cylinder |
| 31477 | 47547-12010 | Plug, Bleeder(For Release Cylinder) |
| 31478 | 31478-30010 | Bleeder Plug Cap |
| OEM | Part name | Category |
|---|---|---|
| 04313-0K050 | Cylinder Kit, Clutch Release | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 31470-0K010 | Cylinder Assy, Clutch Release | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 31470-0K150 | Cylinder Assy, Clutch Release | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 31473-0K010 | Rod, Clutch Release Cylinder Push, No.1 | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 31476-04010 | Boot, Clutch Release Cylinder | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 31478-30010 | Bleeder Plug Cap | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 47547-12010 | Plug, Bleeder(For Release Cylinder) | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
| 90119-T0221 | Bolt(For Clutch Release Cylinder Setting) | Clutch Release Cylinder ([08.2011 - ] (1108- )LAN15,25,35) |
