Search › Model › LAN155
LAN155

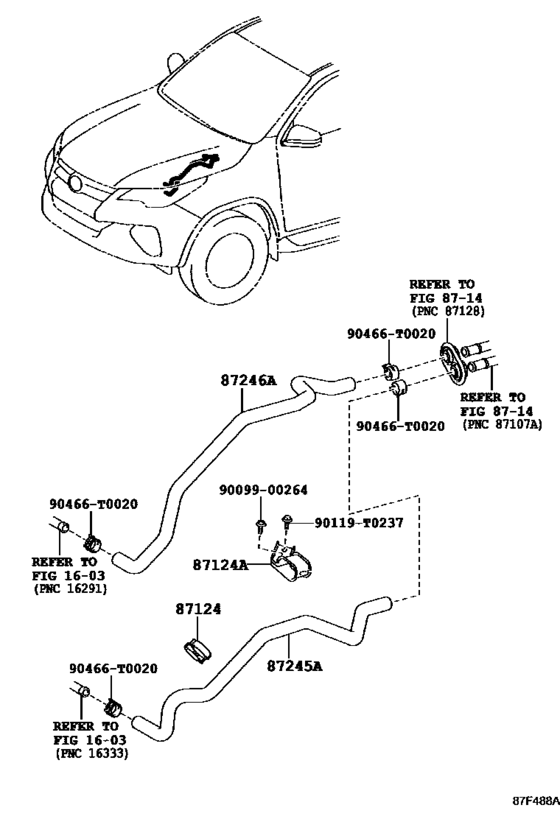

Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) 7
| # | OEM | Part name |
|---|---|---|
| 87124 | 87124-42030 | Clamp, Heater |
| 87124 | 87124-0K060 | Clamp, Heater |
| 87245 | 87245-0KK30 | Hose, Heater Water, Inlet A |
| 87246 | 87245-0KK40 | Hose, Heater Water, Outlet A |
| 90119 | 90119-T0237 | BOLT WWASHER |
| 90466 | 90466-T0020 | Clip(For Water By-Pass Hose No.1) |
| 9009900264 | 90099-00264 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 87124-0K060 | Clamp, Heater | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 87124-42030 | Clamp, Heater | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 87245-0KK30 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 87245-0KK40 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 90099-00264 | SCREW | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 90119-T0237 | BOLT WWASHER | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
| 90466-T0020 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([03.2016 - ] (1603- )LAN155) |
