LAN155

Toyota FORTUNER · 2016 · 3,605 parts · 216 categories

← Back to categories

3,605 items

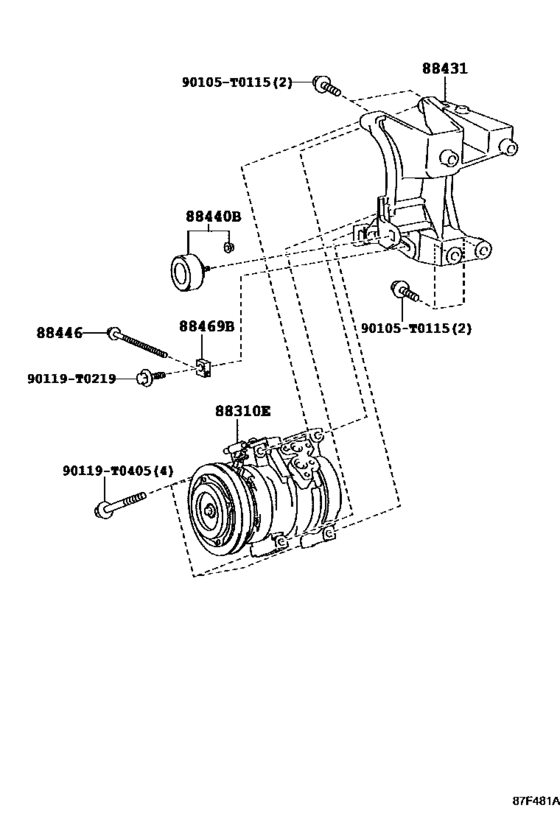

Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155) 7

#	OEM	Part name
88310	88310-0K272	Compressor, W/magnet Clutch
88431	88431-0K080	Bracket, Compressor Mounting, No.1
88440	88440-0K270	Pulley Assy, Idle
88446	88446-60020	Bolt, Idle Pulley
88469	88469-30280	Collar, Adjusting
90105	90105-T0115	BOLT FLANGE
90119	90119-T0219	New Genuine Part

OEM	Part name	Category
88310-0K272	Compressor, W/magnet Clutch	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
88431-0K080	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
88440-0K270	Pulley Assy, Idle	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
88446-60020	Bolt, Idle Pulley	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
88469-30280	Collar, Adjusting	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
90105-T0115	BOLT FLANGE	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)
90119-T0219	New Genuine Part	Heating & Air Conditioning - Compressor ([03.2016 - ] (1603- )LAN155)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 216
Collected: 2026-08-03
