Search › Model › LA710A
LA710A

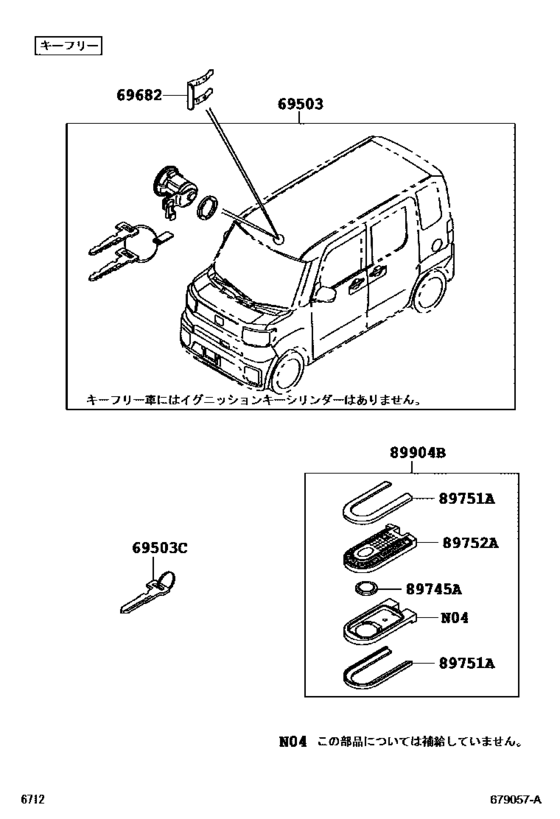

Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) 10
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-B2C30 | Cylinder & Key Set, Door Lock, Rh |
| 69503 | 69005-B2E30 | Cylinder Set, Lock |
| 69503 | 69516-B2120 | Key, Sub |
| 69503 | 69516-B2140 | Key, Sub |
| 69682 | 69682-97202 | Retainer, Lock Cylinder |
| 89745 | 89745-B2060 | Battery, Transmitter |
| 89745 | 89745-B2020 | Battery, Transmitter |
| 89751 | 89751-B2120 | Cover, Transmitter Housing |
| 89752 | 89752-B1030 | Case, Transmitter Housing |
| 89904 | 89994-B2440 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-B2C30 | Cylinder & Key Set, Door Lock, Rh | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 69005-B2E30 | Cylinder Set, Lock | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 69516-B2120 | Key, Sub | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 69516-B2140 | Key, Sub | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 69682-97202 | Retainer, Lock Cylinder | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 89745-B2020 | Battery, Transmitter | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 89745-B2060 | Battery, Transmitter | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 89751-B2120 | Cover, Transmitter Housing | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 89752-B1030 | Case, Transmitter Housing | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
| 89994-B2440 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([05.2016 - ] ｷｰﾌﾘｰ (1605- )G,L) |
