LA710A

Toyota PIXIS · 2015 · 3,108 parts · 221 categories
LA710A ×

← Back to categories

3,108 items

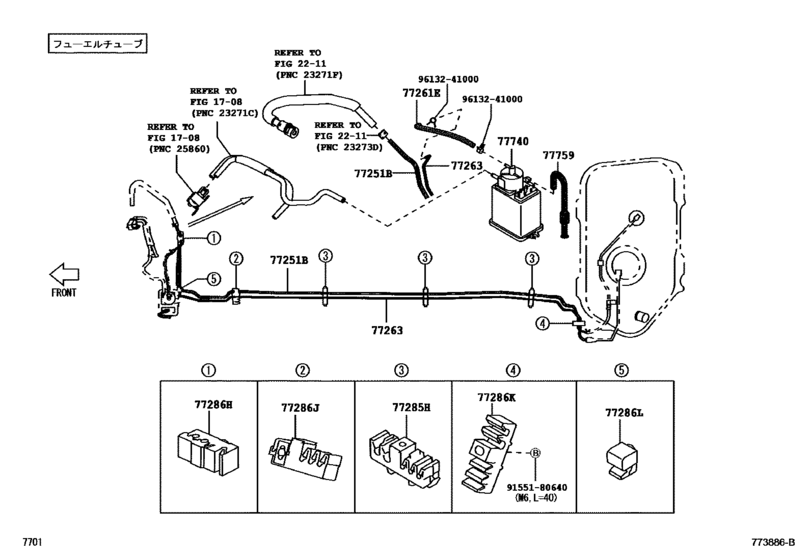

Fuel Tank & Tube ([07.2015 - 05.2016] (1507-1605)) 19
#OEMPart name
77251 77251-B2230 Tube, Fuel Main
77251 77251-B2300 Tube, Fuel Main
77261 95333-04095 Hose, Fuel
77263 77263-B2220 Tube, Fuel Tank To Canister, No.3
77263 77263-B2300 Tube, Fuel Tank To Canister, No.3
77285 47371-B2070 Clamp, Brake Tube, No.8
77285 90044-64657 Clamp, Brake Tube, No.7
77286 47371-B2060 Clamp, Fuel Tube, No.3
77286 90044-64878 Clamp, Fuel Tube, No.3
77286 90044-64888 Clamp, Brake Tube, No.3
77286 47371-B2050 Clamp, Fuel Tube, No.4
77286 90044-64695 Clamp, Brake Tube, No.13
77286 90044-64766 Clamp, Brake Tube, No.8
77286 90044-64655 Clamp, Brake Tube, No.11
77740 77740-B2071 Canister Assy, Charcoal
77740 77740-B2090 Canister Assy, Charcoal
77759 77759-B2012 Hose, Charcoal Canister
9155180640 91551-80640 New Genuine Part
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
