Search › Model › LA700A
LA700A

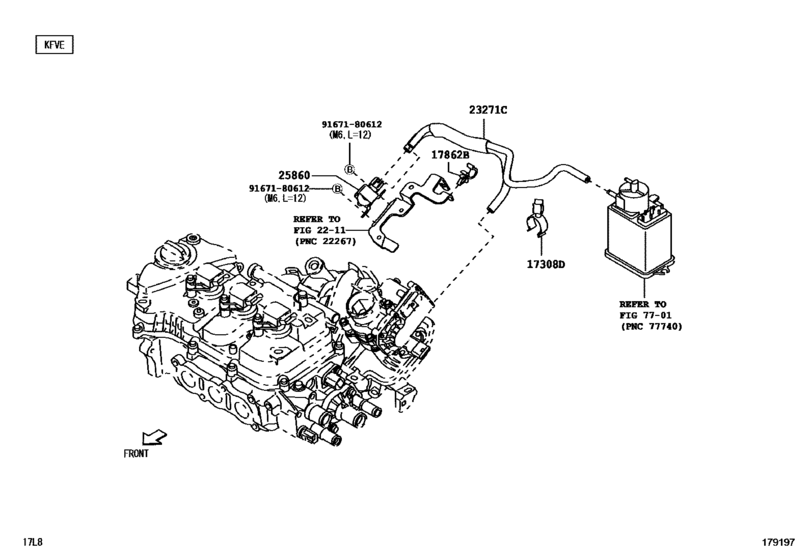

Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) 7
| # | OEM | Part name |
|---|---|---|
| 17308 | 90044-64831 | Clamp, No.2(For Vacuum Hose) |
| 17862 | 90044-64779 | Clamp, Hose |
| 23271 | 77754-B2140 | Hose, Fuel |
| 23271 | 77795-B2100 | Hose, Fuel |
| 23271 | 77795-B2110 | Hose, Fuel |
| 25860 | 89470-B1020 | Valve Assy, Vacuum Switching, No.1 |
| 9167180612 | 91671-80612 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 77754-B2140 | Hose, Fuel | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 77795-B2100 | Hose, Fuel | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 77795-B2110 | Hose, Fuel | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 89470-B1020 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 90044-64779 | Clamp, Hose | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 90044-64831 | Clamp, No.2(For Vacuum Hose) | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
| 91671-80612 | Bolt | Vacuum Piping ([07.2015 - 05.2016] (1507-1605)KFVE) |
