Search › Model › LA700A

LA700A

Toyota PIXIS · 2015 · 2,977 parts · 215 categories

2,977 items

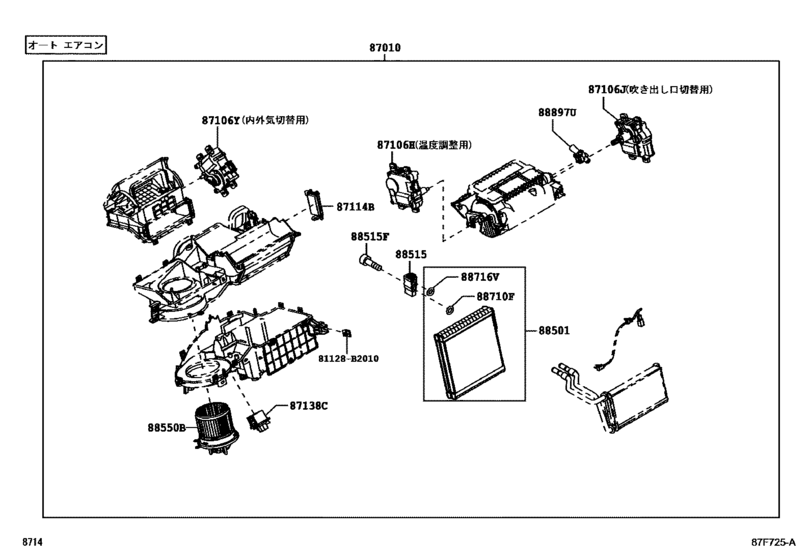

Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L) 24

#	OEM	Part name
81128	81128-B2010	Nut, Headlamp
87010	87010-B2B73	Unit Assy, Air Conditioner
87010	87010-B2B74	Unit Assy, Air Conditioner
87010	87010-B2B83	Unit Assy, Air Conditioner
87010	87010-B2B84	Unit Assy, Air Conditioner
87010	87010-B2D00	Unit Assy, Air Conditioner
87010	87010-B2D30	Unit Assy, Air Conditioner
87106	87106-B2010	Servo Sub-Assy, Damper(For Airmix)
87106	88660-B2040	Servo Sub-Assy, Damper(For Airmix)
87106	88660-B2030	Servo Sub-Assy, Damper(For Mode)
87106	88660-B2050	Servo Sub-Assy, Damper(For Recirculation & Fresh)
87114	87114-B2061	Cover, Heater
87114	87114-B2070	Cover, Heater
87138	87138-B2020	Resistor, Blower
87138	87138-B2040	Resistor, Blower
88501	88501-B2010	Evaporator Sub-Assy, Cooler, No.1
88501	88501-B2060	Evaporator Sub-Assy, Cooler, No.1
88515	88515-B2020	Valve, Cooler Expansion
88515	88515-B2030	Valve, Cooler Expansion
88550	88550-B2100	Motor Assy, Blower
88550	88550-B2140	Motor Assy, Blower
88710	15188-87402	Ring, O
88716	15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)
88897	88897-B2030	Pipe, Aspirator

OEM	Part name	Category
15188-87402	Ring, O	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
81128-B2010	Nut, Headlamp	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2B73	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2B74	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2B83	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2B84	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2D00	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87010-B2D30	Unit Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87106-B2010	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87114-B2061	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87114-B2070	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87138-B2020	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
87138-B2040	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88501-B2010	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88501-B2060	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88515-B2020	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88515-B2030	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88550-B2100	Motor Assy, Blower	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88550-B2140	Motor Assy, Blower	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88660-B2030	Servo Sub-Assy, Damper(For Mode)	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88660-B2040	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88660-B2050	Servo Sub-Assy, Damper(For Recirculation & Fresh)	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)
88897-B2030	Pipe, Aspirator	Heating & Air Conditioning - Cooler Unit ([05.2016 - ] (1605- )G,L)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 215
Collected: 2026-08-04
