Search › Model › LA700A

LA700A

Toyota PIXIS · 2015 · 2,977 parts · 215 categories
LA700A ×

← Back to categories

2,977 items

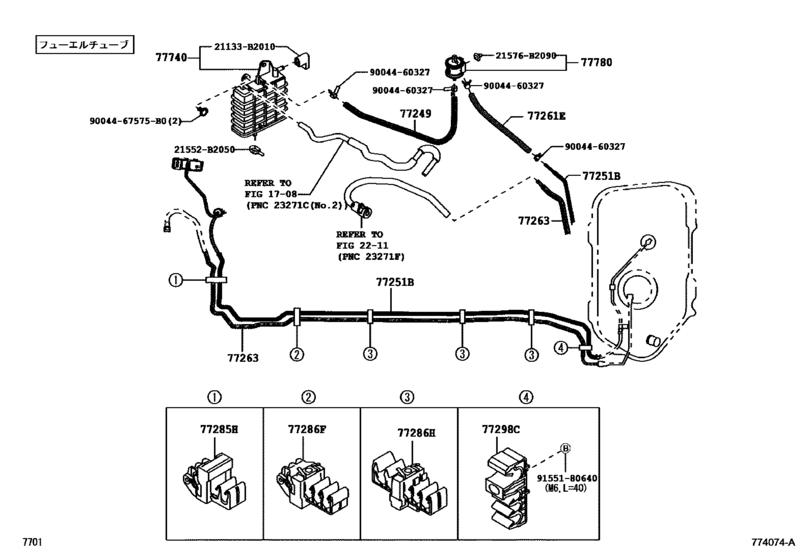

Fuel Tank & Tube ([05.2016 - ] (1605- )) 22
#OEMPart name
21133 21133-B2010 Cover(For Diaphragm)
21552 21552-B2050 New Genuine Part
21576 21576-B2090 Clip, Pump Strainer
77249 77249-B2040 Hose, Fuel Emission
77251 77251-B2230 Tube, Fuel Main
77251 77251-B2300 Tube, Fuel Main
77261 95333-04095 Hose, Fuel
77263 77263-B2220 Tube, Fuel Tank To Canister, No.3
77263 77263-B2300 Tube, Fuel Tank To Canister, No.3
77285 47371-B2070 Clamp, Brake Tube, No.8
77285 90044-64657 Clamp, Brake Tube, No.7
77286 47371-B2020 Clamp, Fuel Tube, No.2
77286 47371-B2060 Clamp, Fuel Tube, No.3
77286 90044-64878 Clamp, Fuel Tube, No.3
77286 90044-64888 Clamp, Brake Tube, No.3
77298 90044-64890 Clamp, Brake Tube, No.5
77740 77740-B2071 Canister Assy, Charcoal
77740 77740-B2090 Canister Assy, Charcoal
77780 17660-B2020 Valve Assy, Purge Control
9004460327 90044-60327 Clip, Fuel Hose
9004467575 90044-67575-B0 New Genuine Part
9155180640 91551-80640 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 4
Category
215
Collected
2026-08-04
