Search › Model › LA700A

LA700A

Toyota PIXIS · 2015 · 2,977 parts · 215 categories

2,977 items

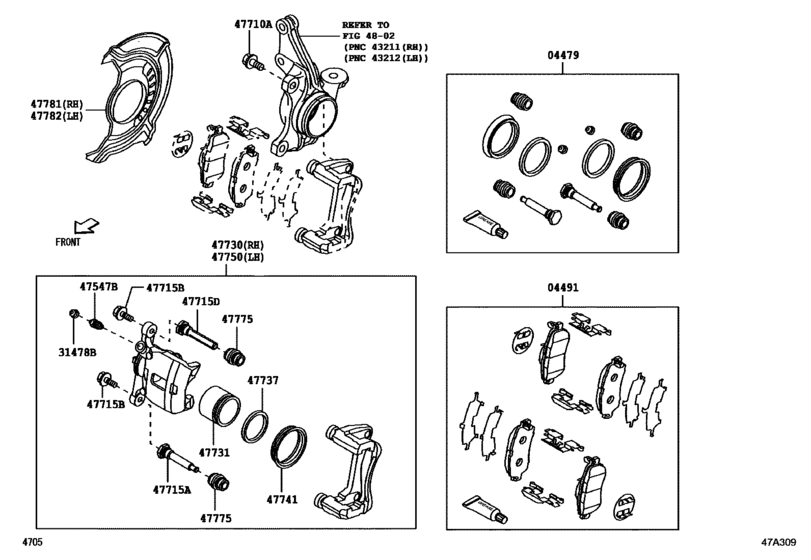

Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- )) 29

#	OEM	Part name
4479	04478-B2150	Cylinder Kit, Disc Brake, Front
4479	04478-B2151	Cylinder Kit, Disc Brake, Front
4479	04478-B2170	Cylinder Kit, Disc Brake, Front
4491	04491-B1055	Pad Kit, Disc Brake, Front
4491	04491-B2150	Pad Kit, Disc Brake, Front
4491	04491-B2101	Pad Kit, Disc Brake, Front
31478	47548-97401	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-B1020	Plug, Bleeder(For Front Disc Brake)
47710	90041-05176	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90041-05242	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47714-B1010	Pin, Front Disc Brake Cylinder Slide
47715	47714-B2010	Pin, Front Disc Brake Cylinder Slide
47715	47715-B1020	Bolt(For Front Disc Brake Cylinder Slide)
47715	47715-97401	Pin, Front Disc Brake Cylinder Slide
47715	47715-B1010	Pin, Front Disc Brake Cylinder Slide, No.2
47730	47730-B2032	Cylinder Assy, Front Disc Brake, Rh
47730	47730-B2080	Cylinder Assy, Front Disc Brake, Rh
47731	47731-97401	Piston, Front Disc Brake
47737	47737-97401	Seal, Front Disc Brake Cylinder Piston
47741	47741-97401	Boot, Front Disc Brake Cylinder
47750	47750-B2032	Cylinder Assy, Disc Brake, Lh
47750	47750-B2080	Cylinder Assy, Disc Brake, Lh
47775	47775-97401	Boot, Bush Dust(For Front Disc Brake)
47775	47775-B2040	Boot, Bush Dust(For Front Disc Brake)
47775	47775-B1010	Boot, Bush Dust(For Front Disc Brake)
47781	47781-B2030	Cover, Disc Brake Dust, Front Rh
47781	47781-B2060	Cover, Disc Brake Dust, Front Rh
47782	47782-B2010	Cover, Disc Brake Dust, Front Lh
47782	47782-B2060	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04478-B2150	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
04478-B2151	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
04478-B2170	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
04491-B1055	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
04491-B2101	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
04491-B2150	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47547-B1020	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47548-97401	Cap, Bleeder Plug(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47714-B1010	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47714-B2010	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47715-97401	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47715-B1010	Pin, Front Disc Brake Cylinder Slide, No.2	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47715-B1020	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47730-B2032	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47730-B2080	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47731-97401	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47737-97401	Seal, Front Disc Brake Cylinder Piston	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47741-97401	Boot, Front Disc Brake Cylinder	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47750-B2032	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47750-B2080	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47775-97401	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47775-B1010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47775-B2040	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47781-B2030	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47781-B2060	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47782-B2010	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
47782-B2060	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
90041-05176	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))
90041-05242	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.2016 - ] (1605- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 215
Collected: 2026-08-04
