Search › Model › LA310A
LA310A

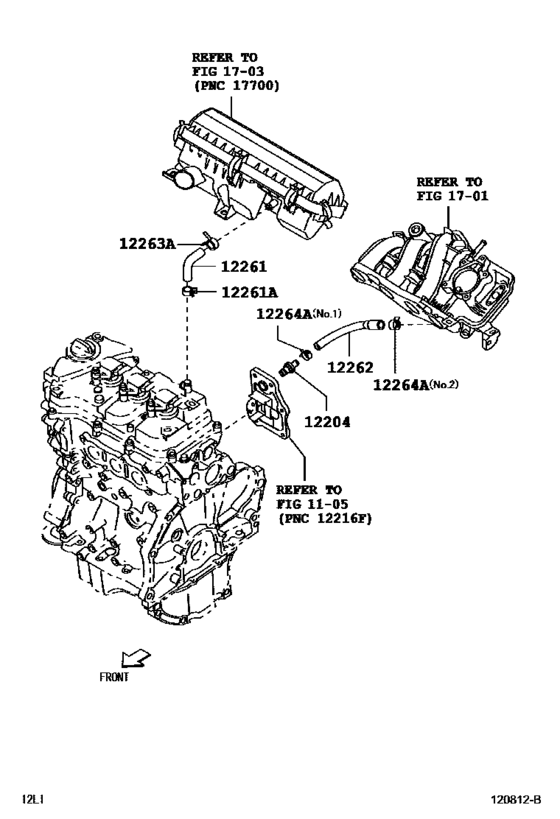

Ventilation Hose ([04.2012 - ] (1204- )) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-B2010 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-B2040 | Hose, Ventilation |
| 12261 | 96136-41901 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12261-B2051 | Hose, Ventilation, No.2 |
| 12263 | 90044-66026 | Clip(For Ventilation Hose) |
| 12264 | 90044-67314 | Clip Or Clamp(For Ventilation Hose) |
| 12264 | 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) |
| OEM | Part name | Category |
|---|---|---|
| 12204-B2010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([04.2012 - ] (1204- )) |
| 12261-B2040 | Hose, Ventilation | Ventilation Hose ([04.2012 - ] (1204- )) |
| 12261-B2051 | Hose, Ventilation, No.2 | Ventilation Hose ([04.2012 - ] (1204- )) |
| 90044-66026 | Clip(For Ventilation Hose) | Ventilation Hose ([04.2012 - ] (1204- )) |
| 90044-67314 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2012 - ] (1204- )) |
| 96136-41901 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2012 - ] (1204- )) |
| 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) | Ventilation Hose ([04.2012 - ] (1204- )) |
