LA310A

Toyota PIXIS · 2012 · 2,585 parts · 193 categories

2,585 items

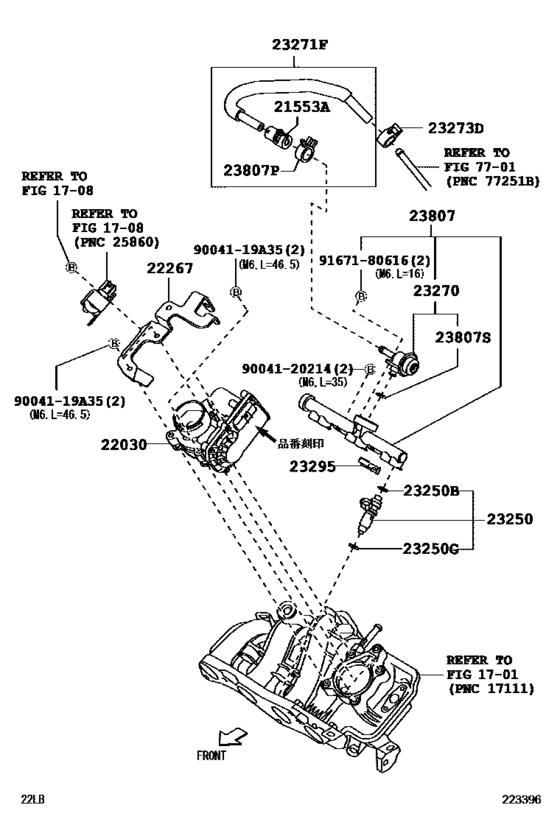

Fuel Injection System ([04.2017 - ] (1704- )) 23

#	OEM	Part name
21553	21553-B2010	Guide, Fuel Main
22030	22030-B2020	Body Assy, Throttle W/motor
22030	22030-B2040	Body Assy, Throttle W/motor
22267	58239-B2030	Bracket, Throttle Body
22267	58239-B2040	Bracket, Throttle Body
23250	23250-B2050	Injector Assy, Fuel
23250	23250-B2090	Injector Assy, Fuel
23250	90043-01290	Ring, O(For Fuel Injector)
23250	90043-01349	Ring, O(For Fuel Injector)
23250	23585-B2050	Ring, O, No.2(For Fuel Injector)
23250	90043-01348	Ring, O(For Fuel Injector)
23270	23270-B2010	Damper Assy, Fuel Pressure Pulsation
23271	77260-B2020	Hose, Fuel
23271	77260-B2070	Hose, Fuel
23273	90044-67400	Clip(For Fuel Pump Hose)
23295	23295-B2020	Holder, Injector, No.1
23295	23295-B2060	Holder, Injector, No.1
23295	23295-B2070	Holder, Injector, No.1
23807	23807-B2020	Pipe Sub-Assy, Fuel Delivery
23807	23807-B2080	Pipe Sub-Assy, Fuel Delivery
23807	90043-01353	Ring, O(For Fuel Injector)
9004120214	90041-20214	New Genuine Part
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
21553-B2010	Guide, Fuel Main	Fuel Injection System ([04.2017 - ] (1704- ))
22030-B2020	Body Assy, Throttle W/motor	Fuel Injection System ([04.2017 - ] (1704- ))
22030-B2040	Body Assy, Throttle W/motor	Fuel Injection System ([04.2017 - ] (1704- ))
23250-B2050	Injector Assy, Fuel	Fuel Injection System ([04.2017 - ] (1704- ))
23250-B2090	Injector Assy, Fuel	Fuel Injection System ([04.2017 - ] (1704- ))
23270-B2010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([04.2017 - ] (1704- ))
23295-B2020	Holder, Injector, No.1	Fuel Injection System ([04.2017 - ] (1704- ))
23295-B2060	Holder, Injector, No.1	Fuel Injection System ([04.2017 - ] (1704- ))
23295-B2070	Holder, Injector, No.1	Fuel Injection System ([04.2017 - ] (1704- ))
23585-B2050	Ring, O, No.2(For Fuel Injector)	Fuel Injection System ([04.2017 - ] (1704- ))
23807-B2020	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2017 - ] (1704- ))
23807-B2080	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2017 - ] (1704- ))
58239-B2030	Bracket, Throttle Body	Fuel Injection System ([04.2017 - ] (1704- ))
58239-B2040	Bracket, Throttle Body	Fuel Injection System ([04.2017 - ] (1704- ))
77260-B2020	Hose, Fuel	Fuel Injection System ([04.2017 - ] (1704- ))
77260-B2070	Hose, Fuel	Fuel Injection System ([04.2017 - ] (1704- ))
90041-20214	New Genuine Part	Fuel Injection System ([04.2017 - ] (1704- ))
90043-01290	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2017 - ] (1704- ))
90043-01348	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2017 - ] (1704- ))
90043-01349	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2017 - ] (1704- ))
90043-01353	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2017 - ] (1704- ))
90044-67400	Clip(For Fuel Pump Hose)	Fuel Injection System ([04.2017 - ] (1704- ))
91671-80616	BOLT FLANGE	Fuel Injection System ([04.2017 - ] (1704- ))
