Search › Model › LA310A
LA310A

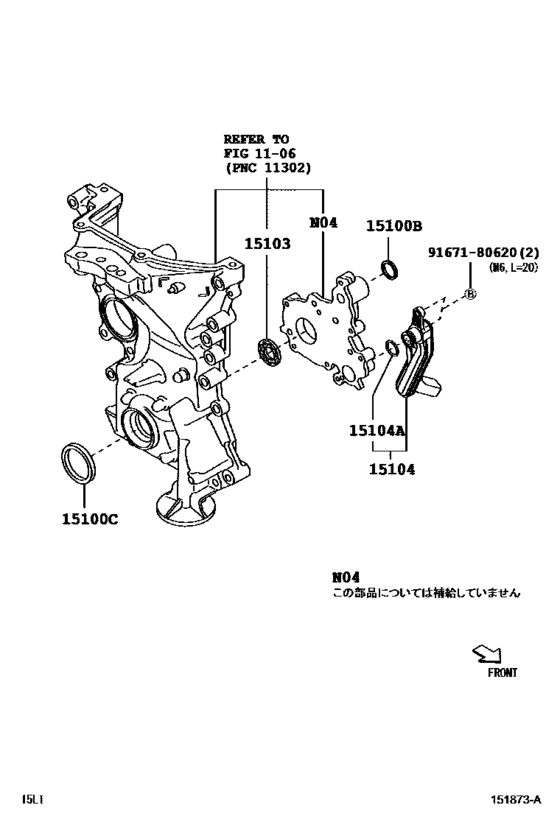

Engine Oil Pump ([04.2012 - ] (1204- )) 7
| # | OEM | Part name |
|---|---|---|
| 15100 | 90043-01325 | Ring, O(For Oil Pump) |
| 15100 | 90043-11424 | Seal(For Oil Pump) |
| 15100 | 90043-11438 | Seal(For Oil Pump) |
| 15103 | 15103-B2011 | Gear Set, Oil Pump |
| 15104 | 15104-B2011 | Strainer Sub-Assy, Oil |
| 15104 | 90043-01324 | Ring, O(For Oil Strainer) |
| 9167180620 | 91671-80620 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 15103-B2011 | Gear Set, Oil Pump | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 15104-B2011 | Strainer Sub-Assy, Oil | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 90043-01324 | Ring, O(For Oil Strainer) | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 90043-01325 | Ring, O(For Oil Pump) | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 90043-11424 | Seal(For Oil Pump) | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 90043-11438 | Seal(For Oil Pump) | Engine Oil Pump ([04.2012 - ] (1204- )) |
| 91671-80620 | New Genuine Part | Engine Oil Pump ([04.2012 - ] (1204- )) |
