Search › Model › LA250A
LA250A

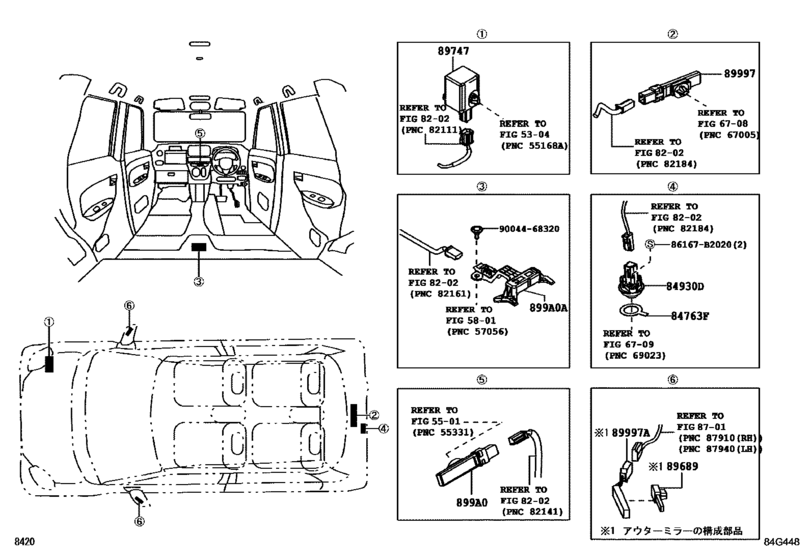

Wireless Door Lock ([09.2016 - ] (1609- )) 10
| # | OEM | Part name |
|---|---|---|
| 899 | 89997-B2360 | Antenna, Electrical Key |
| 899 | 89997-B2370 | Antenna Assy, Indoor Electrical Key, No.2 |
| 84763 | 81818-B2090 | Plate, Switch |
| 84930 | 84905-B2110 | Switch, Door Control |
| 86167 | 86167-B2020 | Screw, Speaker |
| 89689 | 87616-B2010 | Clamp, Wireless Door Lock |
| 89747 | 89747-30040 | Buzzer, Wireless Door Lock |
| 89997 | 89997-B2380 | Antenna, Electrical Key, No.2 |
| 9004468320 | 90044-68320 | Clip, Engine Under Cover, No.2 |
| 9004468320 | 90044-68378 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 81818-B2090 | Plate, Switch | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 84905-B2110 | Switch, Door Control | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 86167-B2020 | Screw, Speaker | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 87616-B2010 | Clamp, Wireless Door Lock | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 89747-30040 | Buzzer, Wireless Door Lock | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 89997-B2360 | Antenna, Electrical Key | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 89997-B2370 | Antenna Assy, Indoor Electrical Key, No.2 | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 89997-B2380 | Antenna, Electrical Key, No.2 | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 90044-68320 | Clip, Engine Under Cover, No.2 | Wireless Door Lock ([09.2016 - ] (1609- )) |
| 90044-68378 | CLIP | Wireless Door Lock ([09.2016 - ] (1609- )) |
