LA250A

Toyota PIXIS-JOY · 2016 · 2,373 parts · 179 categories

← Back to categories

2,373 items

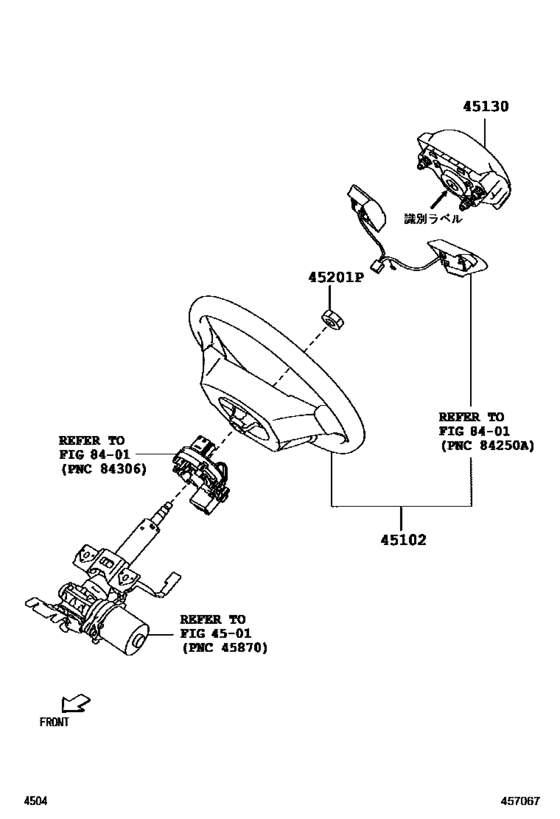

Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX) 7

#	OEM	Part name
45102	45102-B2B10-B0	Wheel Sub-Assy, Steering
45102	45102-B2B10-C0	Wheel Sub-Assy, Steering
45102	45102-B2B20-B0	Wheel Sub-Assy, Steering
45102	45102-B2B20-C0	Wheel Sub-Assy, Steering
45130	45130-B1150-B0	Button Assy, Horn
45130	45130-B1150-C0	Button Assy, Horn
45201	90041-70014	Nut, Steering Wheel Set

OEM	Part name	Category
45102-B2B10-B0	Wheel Sub-Assy, Steering	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
45102-B2B10-C0	Wheel Sub-Assy, Steering	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
45102-B2B20-B0	Wheel Sub-Assy, Steering	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
45102-B2B20-C0	Wheel Sub-Assy, Steering	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
45130-B1150-B0	Button Assy, Horn	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
45130-B1150-C0	Button Assy, Horn	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
90041-70014	Nut, Steering Wheel Set	Steering Wheel ([09.2016 - ] (1609- )CG,CGT,CX,FG,FGT,FX)
