LA250A

Toyota PIXIS-JOY · 2016 · 2,373 parts · 179 categories

2,373 items

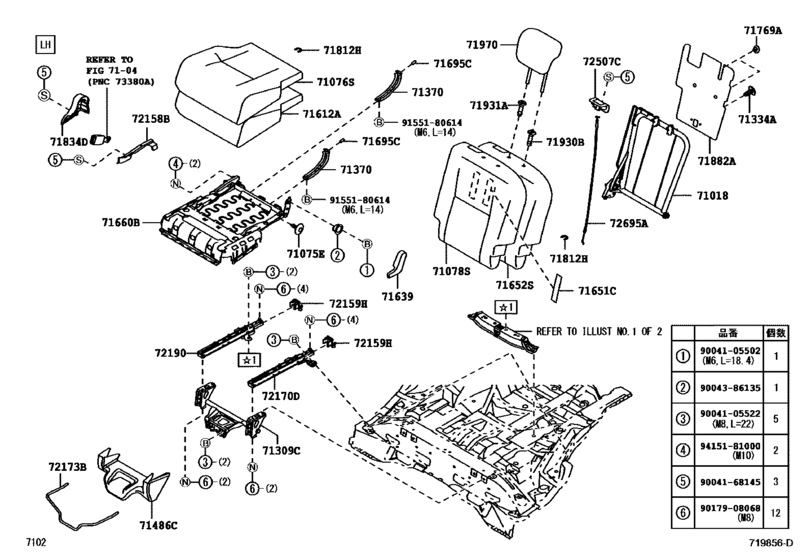

Rear Seat & Seat Track ([09.2016 - ] LH (1609- )) 53

#	OEM	Part name
71018	71018-B2240	Frame Sub-Assy, Rear Seat Back, Lh
71075	90044-68185-B1	Clip(For Rear Seat)
71075	90044-68185-C1	Clip(For Rear Seat)
71076	71076-B2650-C0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-B2660-E0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-B2680-A0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71078	71078-B2B30-C1	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-B2B40-E1	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-B2B60-A1	Cover, Rear Seat Back, Lh(For Separate Type)
71309	71308-B2190	Leg Sub-Assy, Rear Seat, Rear Lh
71334	71334-B2030-B2	Stopper, Rear Seat Leg
71334	71334-B2030-C0	Stopper, Rear Seat Leg
71370	71307-B2060	Bracket Sub-Assy, Rear Seat Cushion Holder
71486	71486-B2050-B0	Cover, Rear Seat Hinge, Lh
71486	71486-B2050-C0	Cover, Rear Seat Hinge, Lh
71612	71504-B2200	Pad, Rear Seat Cushion, Lh
71639	71639-B2060-B0	Cover, Rear Seat Cushion Hinge, Lh
71639	71639-B2060-C0	Cover, Rear Seat Cushion Hinge, Lh
71651	71618-B2010	Pad, Rear Seat Back, A
71652	71508-B2330	Pad, Rear Seat Back, Lh(For Separate Type)
71660	71056-B2061	Spring Assy, Rear Seat Cushion, Lh
71695	71695-B2020	Protector, Rear Seat, No.1
71769	71769-B2010	Clip, Rear Seat Back Board
71812	71812-87201	Clip (For Front Seat Cushion Cover)
71834	71834-B2100-B0	Cover, Rear Seat Reclining, Lh
71834	71834-B2100-C0	Cover, Rear Seat Reclining, Lh
71882	71881-B2120	Board, Rear Seat Back, Rh
71930	71930-B2010-A0	Support Assy, Rear Seat Headrest
71930	71930-B2010-B0	Support Assy, Rear Seat Headrest
71930	71930-B2010-C1	Support Assy, Rear Seat Headrest
71930	71930-B2010-E1	Support Assy, Rear Seat Headrest
71931	71931-B2010-A0	Support, Rear Seat Headrest
71931	71931-B2010-B0	Support, Front Seat Headrest
71931	71931-B2010-C1	Support, Front Seat Headrest
71931	71931-B2010-E1	Support, Rear Seat Headrest
71970	71940-B2A40-C2	Headrest Assy, Rear Seat
71970	71940-B2A50-E0	Headrest Assy, Rear Seat
71970	71940-B2A70-A0	Headrest Assy, Rear Seat
72158	72158-B2040-B0	Cover, Seat Track Bracket, Inner Lh
72158	72158-B2040-C0	Cover, Seat Track Bracket, Inner Lh
72159	72157-B2030	Cover, Seat Track Bracket, Inner
72170	72160-B2090	Track Assy, Rear Seat, Outer Rh
72173	72173-B2100	Handle, Rear Seat Track Adjusting, Rh
72507	72507-B2020-B3	Handle Sub-Assy, Reclining Release, Rh
72507	72507-B2020-C0	Handle Sub-Assy, Reclining Release, Rh
72695	72695-B2110	Cable, Rear Seat Lock Control
9004105502	90041-05502	New Genuine Part
9004105522	90041-05522	New Genuine Part
9004168145	90041-68145	New Genuine Part
9004386135	90043-86135	New Genuine Part
9017908068	90179-08068	NUT
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
71018-B2240	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71056-B2061	Spring Assy, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71076-B2650-C0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71076-B2660-E0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71076-B2680-A0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71078-B2B30-C1	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71078-B2B40-E1	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71078-B2B60-A1	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71307-B2060	Bracket Sub-Assy, Rear Seat Cushion Holder	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71308-B2190	Leg Sub-Assy, Rear Seat, Rear Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71334-B2030-B2	Stopper, Rear Seat Leg	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71334-B2030-C0	Stopper, Rear Seat Leg	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71486-B2050-B0	Cover, Rear Seat Hinge, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71486-B2050-C0	Cover, Rear Seat Hinge, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71504-B2200	Pad, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71508-B2330	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71618-B2010	Pad, Rear Seat Back, A	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71639-B2060-B0	Cover, Rear Seat Cushion Hinge, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71639-B2060-C0	Cover, Rear Seat Cushion Hinge, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71695-B2020	Protector, Rear Seat, No.1	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71769-B2010	Clip, Rear Seat Back Board	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71812-87201	Clip (For Front Seat Cushion Cover)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71834-B2100-B0	Cover, Rear Seat Reclining, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71834-B2100-C0	Cover, Rear Seat Reclining, Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71881-B2120	Board, Rear Seat Back, Rh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71930-B2010-A0	Support Assy, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71930-B2010-B0	Support Assy, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71930-B2010-C1	Support Assy, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71930-B2010-E1	Support Assy, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71931-B2010-A0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71931-B2010-B0	Support, Front Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71931-B2010-C1	Support, Front Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71931-B2010-E1	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71940-B2A40-C2	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71940-B2A50-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
71940-B2A70-A0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72157-B2030	Cover, Seat Track Bracket, Inner	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72158-B2040-B0	Cover, Seat Track Bracket, Inner Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72158-B2040-C0	Cover, Seat Track Bracket, Inner Lh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72160-B2090	Track Assy, Rear Seat, Outer Rh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72173-B2100	Handle, Rear Seat Track Adjusting, Rh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72507-B2020-B3	Handle Sub-Assy, Reclining Release, Rh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72507-B2020-C0	Handle Sub-Assy, Reclining Release, Rh	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
72695-B2110	Cable, Rear Seat Lock Control	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90041-05502	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90041-05522	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90041-68145	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90043-86135	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90044-68185-B1	Clip(For Rear Seat)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90044-68185-C1	Clip(For Rear Seat)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
90179-08068	NUT	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
94151-81000	NUT FLANGE	Rear Seat & Seat Track ([09.2016 - ] LH (1609- ))
