| 04474-B1030 |
Cylinder Kit, Rear Wheel |

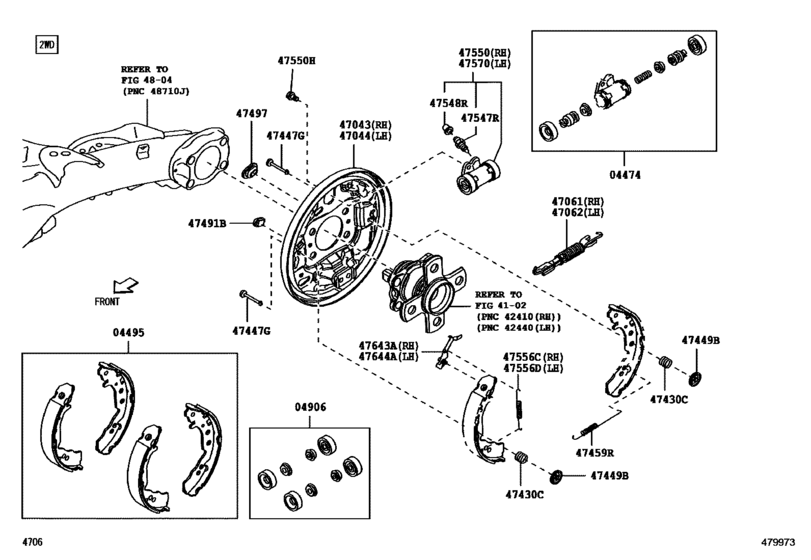

Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 04495-B1310 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 04495-B2400 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 04906-B1030 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47043-B2090 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47044-B2090 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47061-B2040 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47062-B2040 |
Strut Set, Parking Brake Shoe, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47447-87204 |
Pin, Shoe Hold Down Spring(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47449-97201 |
Cup, Shoe Hold Down Spring(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47459-B2020 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47491-B1010 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47491-B2030 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47547-87204 |
Plug, Bleeder(For Front Disc Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47548-87501 |
Cap, Bleeder Plug(For Front Disc Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47550-B1010 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47555-B2040 |
Spring, Adjuster Lock, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47556-B2020 |
Spring, Adjuster Lock, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47570-B1010 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47643-B2020 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 47644-B2020 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 90041-19848 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
| 90045-01848 |
Spring(For Rear Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2016 - ] 2WD (1609- )LA250) |
