Search › Model › LA250A
LA250A

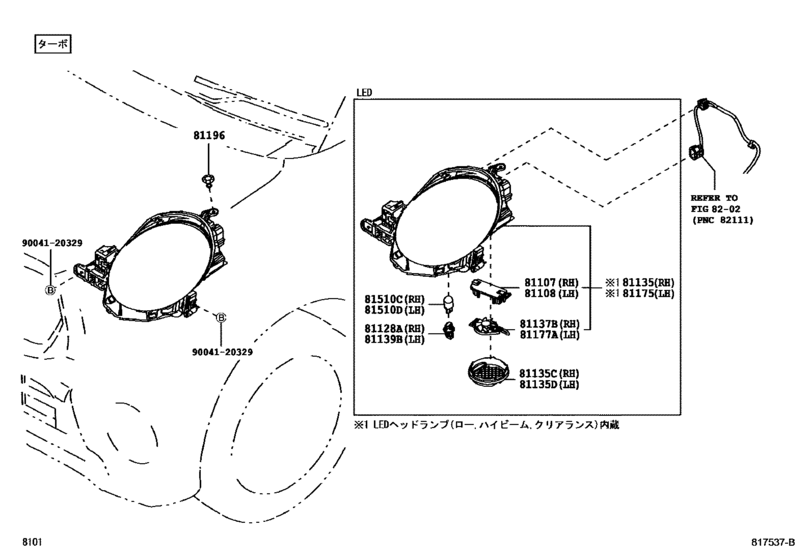

Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) 10
| # | OEM | Part name |
|---|---|---|
| 81107 | 85967-B2090 | Computer Sub-Assy, Headlamp Light Control, Rh |
| 81128 | 90075-60028 | Socket, Headlamp, Bulb |
| 81135 | 81130-B2610 | Unit Assy, Headlamp, Rh |
| 81135 | 81135-B1010 | Cover, Headlamp Back, No.1 |
| 81137 | 81137-B2010 | Fan, Headlamp, Rh |
| 81175 | 81170-B2620 | Unit Assy, Headlamp, Lh |
| 81196 | 90044-68320 | Clip, Engine Under Cover, No.2 |
| 81196 | 90044-68378 | CLIP |
| 81510 | 90049-51179 | Bulb (For Front Turn Signal Lamp) |
| 9004120329 | 90041-20329 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 81130-B2610 | Unit Assy, Headlamp, Rh | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 81135-B1010 | Cover, Headlamp Back, No.1 | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 81137-B2010 | Fan, Headlamp, Rh | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 81170-B2620 | Unit Assy, Headlamp, Lh | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 85967-B2090 | Computer Sub-Assy, Headlamp Light Control, Rh | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 90041-20329 | New Genuine Part | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 90044-68320 | Clip, Engine Under Cover, No.2 | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 90044-68378 | CLIP | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 90049-51179 | Bulb (For Front Turn Signal Lamp) | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
| 90075-60028 | Socket, Headlamp, Bulb | Headlamp ([09.2016 - ] TBO (1609- )CGT,FGT,S) |
