Search › Model › LA250A
LA250A

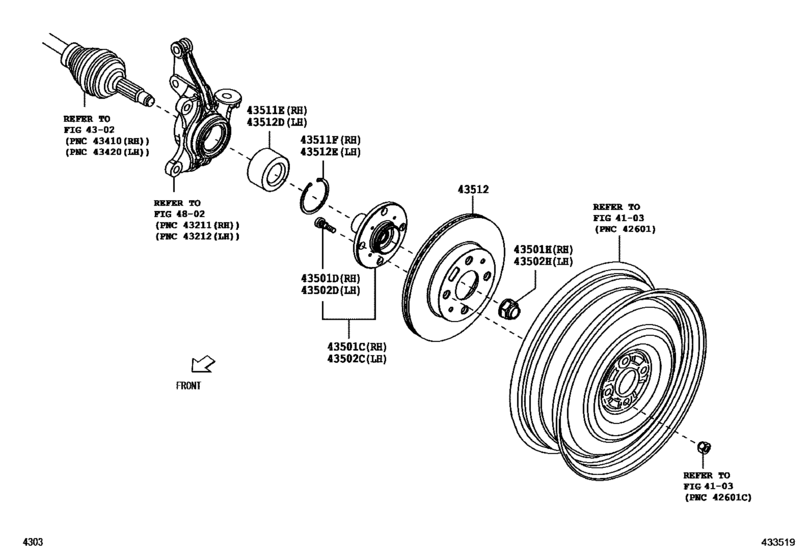

Front Axle Hub ([09.2016 - ] (1609- )) 7
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-B5020 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90049-12056 | Bolt, Hub (For Rear Axle) |
| 43501 | 90041-79274 | Nut (For Front Axle Shaft Rh) |
| 43511 | 43560-B2021 | Bearing (For Front Axle Hub Rh) |
| 43511 | 43560-B2030 | Bearing (For Front Axle Hub Rh) |
| 43511 | 90045-21163 | Ring, Hole Snap (For Front Axle Hub) |
| 43512 | 43512-B2112 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43502-B5020 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([09.2016 - ] (1609- )) |
| 43512-B2112 | Disc, Front | Front Axle Hub ([09.2016 - ] (1609- )) |
| 43560-B2021 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([09.2016 - ] (1609- )) |
| 43560-B2030 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([09.2016 - ] (1609- )) |
| 90041-79274 | Nut (For Front Axle Shaft Rh) | Front Axle Hub ([09.2016 - ] (1609- )) |
| 90045-21163 | Ring, Hole Snap (For Front Axle Hub) | Front Axle Hub ([09.2016 - ] (1609- )) |
| 90049-12056 | Bolt, Hub (For Rear Axle) | Front Axle Hub ([09.2016 - ] (1609- )) |
