Search › Model › LA250A
LA250A

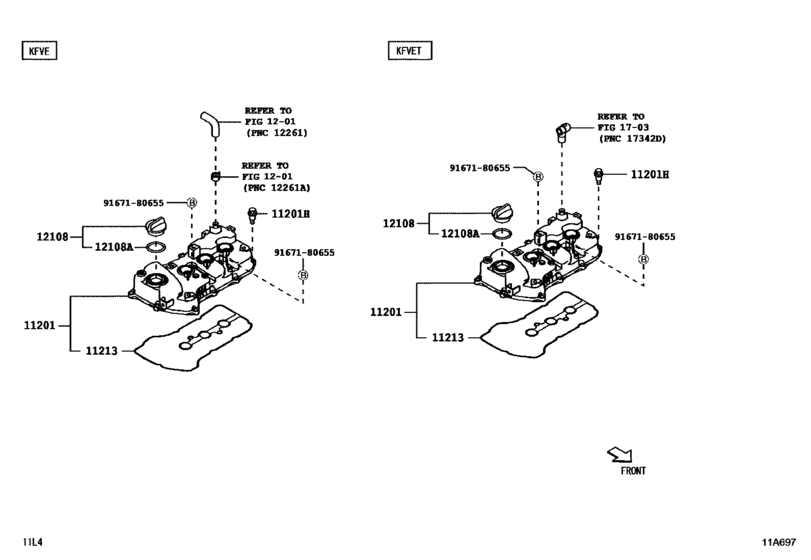

Cylinder Head ([09.2016 - ] (1609- )) 7
| # | OEM | Part name |
|---|---|---|
| 11201 | 11210-B2024 | Cover Sub-Assy, Cylinder Head |
| 11201 | 90041-09249 | Bolt(For Cylinder Head Cover) |
| 11201 | 11210-B2014 | Cover Sub-Assy, Cylinder Head |
| 11213 | 11213-B2011 | Gasket, Cylinder Head Cover |
| 12108 | 12180-97201 | Cap Sub-Assy, Oil Filler |
| 12108 | 12195-87206 | Gasket(For Oil Filler Cap) |
| 9167180655 | 91671-80655 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 11210-B2014 | Cover Sub-Assy, Cylinder Head | Cylinder Head ([09.2016 - ] (1609- )) |
| 11210-B2024 | Cover Sub-Assy, Cylinder Head | Cylinder Head ([09.2016 - ] (1609- )) |
| 11213-B2011 | Gasket, Cylinder Head Cover | Cylinder Head ([09.2016 - ] (1609- )) |
| 12180-97201 | Cap Sub-Assy, Oil Filler | Cylinder Head ([09.2016 - ] (1609- )) |
| 12195-87206 | Gasket(For Oil Filler Cap) | Cylinder Head ([09.2016 - ] (1609- )) |
| 90041-09249 | Bolt(For Cylinder Head Cover) | Cylinder Head ([09.2016 - ] (1609- )) |
| 91671-80655 | New Genuine Part | Cylinder Head ([09.2016 - ] (1609- )) |
