Search › Model › LA250A
LA250A

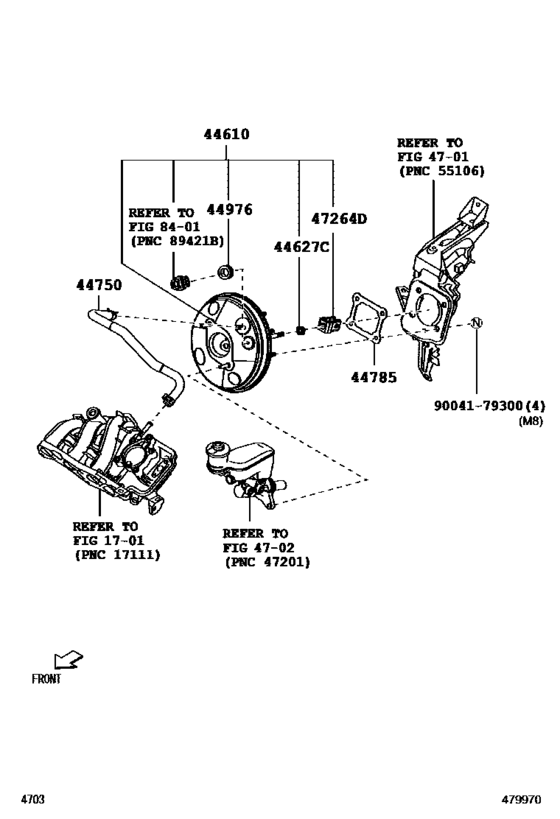

Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) 7
| # | OEM | Part name |
|---|---|---|
| 44610 | 44610-B2470 | Booster Assy, Brake |
| 44627 | 94120-40800 | Nut(For Clutch Pedal Stopper) |
| 44750 | 44750-B2261 | Hose Assy, Vacuum |
| 44785 | 47278-87703 | Gasket, Brake Booster |
| 44976 | 44685-B2010 | Seal, Booster |
| 47264 | 47264-B2020 | Clevis, Brake Master Cylinder Push Rod |
| 9004179300 | 90041-79300 | Nut, Booster |
| OEM | Part name | Category |
|---|---|---|
| 44610-B2470 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 44685-B2010 | Seal, Booster | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 44750-B2261 | Hose Assy, Vacuum | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 47264-B2020 | Clevis, Brake Master Cylinder Push Rod | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 47278-87703 | Gasket, Brake Booster | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 90041-79300 | Nut, Booster | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
| 94120-40800 | Nut(For Clutch Pedal Stopper) | Brake Booster & Vacuum Tube ([09.2016 - ] (1609- )) |
