LA250A

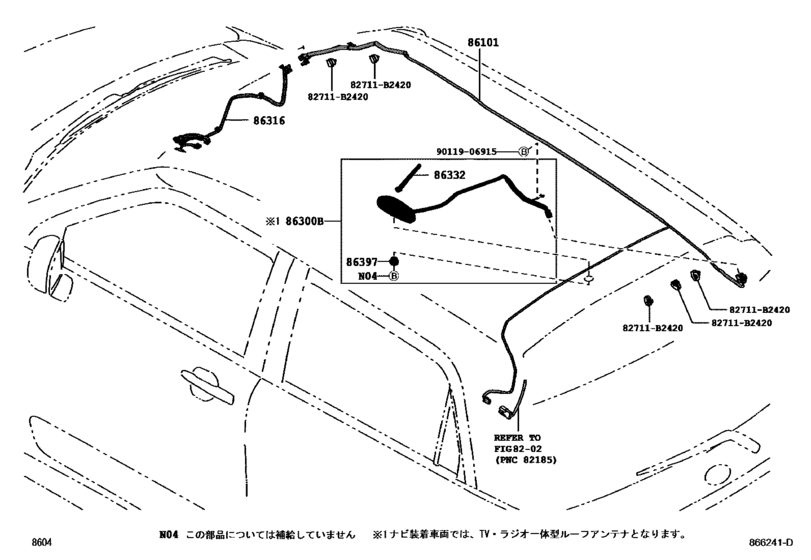

Antenna ([09.2016 - ] (1609- )) 9
| # | OEM | Part name |
|---|---|---|
| 82711 | 82711-B2420 | Wire, Fuse To Fuse(For Combustion Heater) |
| 86101 | 86159-B2330 | Cord Sub-Assy, Antenna |
| 86101 | 86316-B2760 | Cord Sub-Assy, Antenna |
| 86300 | 86300-B2450 | Antenna Assy, Amplifier, No.1 |
| 86316 | 86159-B2340 | Cable, Antenna |
| 86316 | 86316-B2770 | Cable, Antenna |
| 86332 | 86332-B1080 | Rod, Antenna |
| 86397 | 86397-B2010 | Plate, Antenna Earth |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-B2420 | Wire, Fuse To Fuse(For Combustion Heater) | Antenna ([09.2016 - ] (1609- )) |
| 86159-B2330 | Cord Sub-Assy, Antenna | Antenna ([09.2016 - ] (1609- )) |
| 86159-B2340 | Cable, Antenna | Antenna ([09.2016 - ] (1609- )) |
| 86300-B2450 | Antenna Assy, Amplifier, No.1 | Antenna ([09.2016 - ] (1609- )) |
| 86316-B2760 | Cord Sub-Assy, Antenna | Antenna ([09.2016 - ] (1609- )) |
| 86316-B2770 | Cable, Antenna | Antenna ([09.2016 - ] (1609- )) |
| 86332-B1080 | Rod, Antenna | Antenna ([09.2016 - ] (1609- )) |
| 86397-B2010 | Plate, Antenna Earth | Antenna ([09.2016 - ] (1609- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([09.2016 - ] (1609- )) |
