Search › Model › LA250A

LA250A

Toyota PIXIS-JOY · 2016 · 2,373 parts · 179 categories

2,373 items

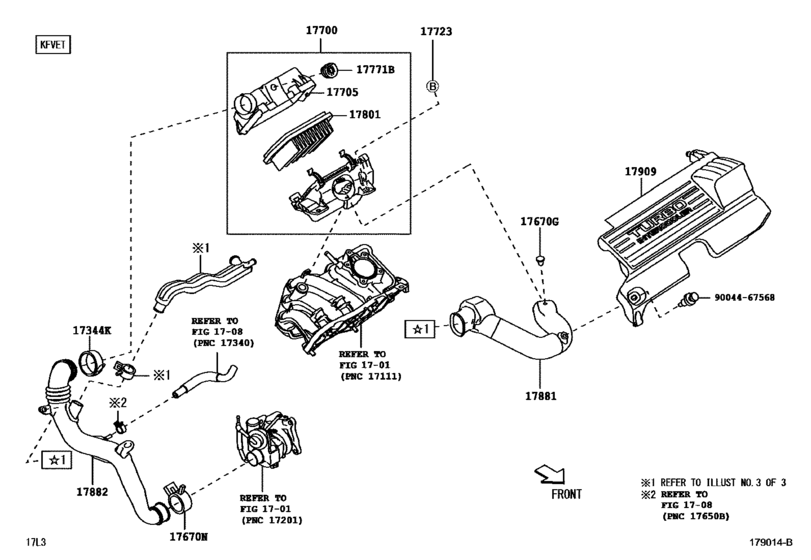

Air Cleaner ([09.2016 - ] (1609- )KFVET) 55

#	OEM	Part name
12268	90044-66024	Clip, Hose
17113	17113-B2010	Pipe, Intake, No.1
17115	17115-B2020	Pipe, Intake, No.2
17303	17360-B2010	Pipe Sub-Assy, Air
17341	17341-B2070	Hose, Air, No.1
17341	90044-66039	Clamp Or Clip(For Air Hose, No.1)
17342	12261-B2070	Hose, Air, No.2
17342	96136-41901	Clip Or Clamp(For Ventilation Hose)
17343	17343-B2010	Hose, Air, No.3
17344	90044-66008	Clip(For Air Hose, No.4)
17344	17344-B2010	Hose, Air, No.4
17345	17345-B2010	Hose, Air, No.5
17347	17302-B2011	Hose, Air, No.7
17349	17349-B2040	Hose, Intake Pipe
17650	90048-21004	Valve, Vacuum Switching
17670	90044-67568	Clip(For Air Hose No.1)
17670	90044-66004	Clip(For Air Hose No.4)
17670	90044-66021	Clip(For Air Hose No.2)
17670	17670-B2010	Valve Assy, Air By-Pass
17700	17700-B2111	Cleaner Assy, Air
17705	17705-B2070	Cap Sub-Assy, Air Cleaner
17710	90044-80654	Grommet
17723	90041-20322	Bolt, Air Cleaner Cap
17763	90044-80660	Grommet
17771	90044-80656	Grommet(For Air Cleaner Bracket)
17781	90044-64827	Clamp, Hose
17801	17801-B2070	Element Sub-Assy, Air Cleaner Filter
17805	47131-B2062	Cushion, Intercooler Support
17872	17872-B2030	Bracket, Intake Air Connector
17875	90044-66030	Clip(For Water Inlet Hose)
17875	96136-42901	Clip Or Clamp(For Ventilation Hose)
17881	17881-B2120	Hose, Air Cleaner, No.1
17882	17882-B2061	Hose, Air Cleaner, No.2
17908	90044-44113	Hose, Air
17908	90044-44116	Hose, Air
17908	95411-19995	Hose, Vaccum
17908	90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)
17909	17909-B2032	Duct Sub-Assy, Intercooler Cooling Air
17940	17940-B2031	Intercooler Assy
17940	17960-B2020	Bracket, Intercooler Support
17940	17949-B2020	Ring, O(For Intercooler)
23285	90048-20008	Valve, Check, No.1
25761	90999-92002	Air Hose (300 mm)
25771	95411-19915	Hose, Vaccum Transmitting, No.2
9004105437	90041-05437	New Genuine Part
9004120211	90041-20211	New Genuine Part
9004120212	90041-20212	New Genuine Part
9004389053	90043-89053	New Genuine Part
9004413034	90044-13034	Way, 3(For Air Hose)
9004413053	90044-13053	Way, 3(For Hot Start Valve)
9155180620	91551-80620	Bolt
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9167180616	91671-80616	BOLT FLANGE
9613644301	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
9613644801	96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)

OEM	Part name	Category
12261-B2070	Hose, Air, No.2	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17113-B2010	Pipe, Intake, No.1	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17115-B2020	Pipe, Intake, No.2	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17302-B2011	Hose, Air, No.7	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17341-B2070	Hose, Air, No.1	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17343-B2010	Hose, Air, No.3	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17344-B2010	Hose, Air, No.4	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17345-B2010	Hose, Air, No.5	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17349-B2040	Hose, Intake Pipe	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17360-B2010	Pipe Sub-Assy, Air	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17670-B2010	Valve Assy, Air By-Pass	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17700-B2111	Cleaner Assy, Air	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17705-B2070	Cap Sub-Assy, Air Cleaner	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17801-B2070	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17872-B2030	Bracket, Intake Air Connector	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17881-B2120	Hose, Air Cleaner, No.1	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17882-B2061	Hose, Air Cleaner, No.2	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17909-B2032	Duct Sub-Assy, Intercooler Cooling Air	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17940-B2031	Intercooler Assy	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17949-B2020	Ring, O(For Intercooler)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
17960-B2020	Bracket, Intercooler Support	Air Cleaner ([09.2016 - ] (1609- )KFVET)
47131-B2062	Cushion, Intercooler Support	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90041-05437	New Genuine Part	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90041-20211	New Genuine Part	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90041-20212	New Genuine Part	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90041-20322	Bolt, Air Cleaner Cap	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90043-89053	New Genuine Part	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-13034	Way, 3(For Air Hose)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-13053	Way, 3(For Hot Start Valve)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-44113	Hose, Air	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-44116	Hose, Air	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-64827	Clamp, Hose	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66004	Clip(For Air Hose No.4)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66008	Clip(For Air Hose, No.4)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66021	Clip(For Air Hose No.2)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66024	Clip, Hose	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66030	Clip(For Water Inlet Hose)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-66039	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-67568	Clip(For Air Hose No.1)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-80654	Grommet	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-80656	Grommet(For Air Cleaner Bracket)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90044-80660	Grommet	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90048-20008	Valve, Check, No.1	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90048-21004	Valve, Vacuum Switching	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90999-92002	Air Hose (300 mm)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
91551-80620	Bolt	Air Cleaner ([09.2016 - ] (1609- )KFVET)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
91671-80616	BOLT FLANGE	Air Cleaner ([09.2016 - ] (1609- )KFVET)
95411-19915	Hose, Vaccum Transmitting, No.2	Air Cleaner ([09.2016 - ] (1609- )KFVET)
95411-19995	Hose, Vaccum	Air Cleaner ([09.2016 - ] (1609- )KFVET)
96136-41901	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
96136-42901	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([09.2016 - ] (1609- )KFVET)
96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([09.2016 - ] (1609- )KFVET)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 179
Collected: 2026-08-04
