L585A

Toyota PIXIS · 2011 · 2,383 parts · 186 categories

← Back to categories

2,383 items

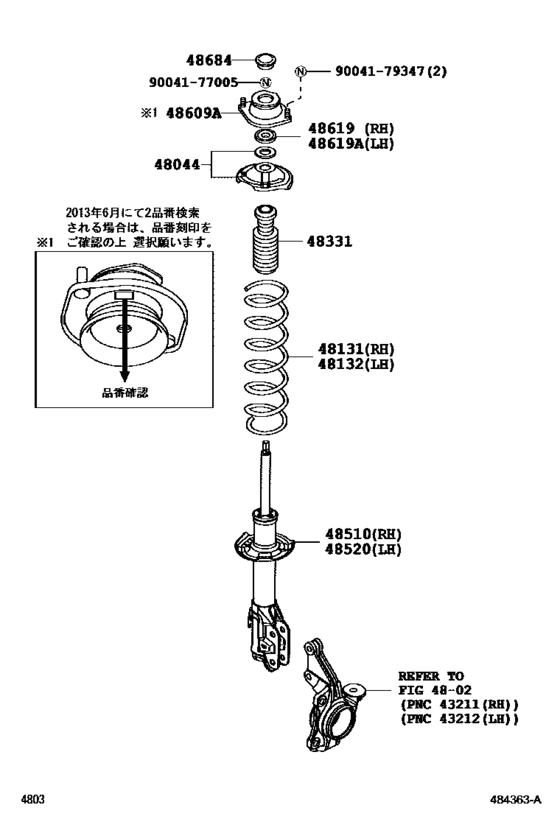

Front Spring & Shock Absorber ([09.2011 - ] (1109- )) 16

#	OEM	Part name
48044	48044-B2010	Seat Sub- Assy, Front Spring, No.1
48131	48131-B2740	Spring, Front Coil, Rh
48131	48131-B2680	Spring, Front Coil, Rh
48331	48331-B2020	Bumper, Front Spring, No.1
48510	48510-B2533	Absorber Assy, Shock, Front Rh
48510	48510-B2563	Absorber Assy, Shock, Front Rh
48510	48510-B2564	Absorber Assy, Shock, Front Rh
48520	48520-B2563	Absorber Assy, Shock, Front Lh
48520	48520-B2564	Absorber Assy, Shock, Front Lh
48609	48609-B2050	Support Sub-Assy, Front Suspension
48609	48609-B2060	Support Sub-Assy, Front Suspension
48619	48619-B2010	Bearing, Strut Mounting, Rh
48684	48684-87202	Cover, Bearing Dust
48684	48684-B2010	Cover, Bearing Dust
9004177005	90041-77005	Nut
9004179347	90041-79347	Nut(For Front Support To Front Shock Absorber Rh)

OEM	Part name	Category
48044-B2010	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48131-B2680	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48131-B2740	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48331-B2020	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48510-B2533	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48510-B2563	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48510-B2564	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48520-B2563	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48520-B2564	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48609-B2050	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48609-B2060	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48619-B2010	Bearing, Strut Mounting, Rh	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48684-87202	Cover, Bearing Dust	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
48684-B2010	Cover, Bearing Dust	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
90041-77005	Nut	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
90041-79347	Nut(For Front Support To Front Shock Absorber Rh)	Front Spring & Shock Absorber ([09.2011 - ] (1109- ))
