Search › Model › L585A

L585A

Toyota PIXIS · 2011 · 2,383 parts · 186 categories

2,383 items

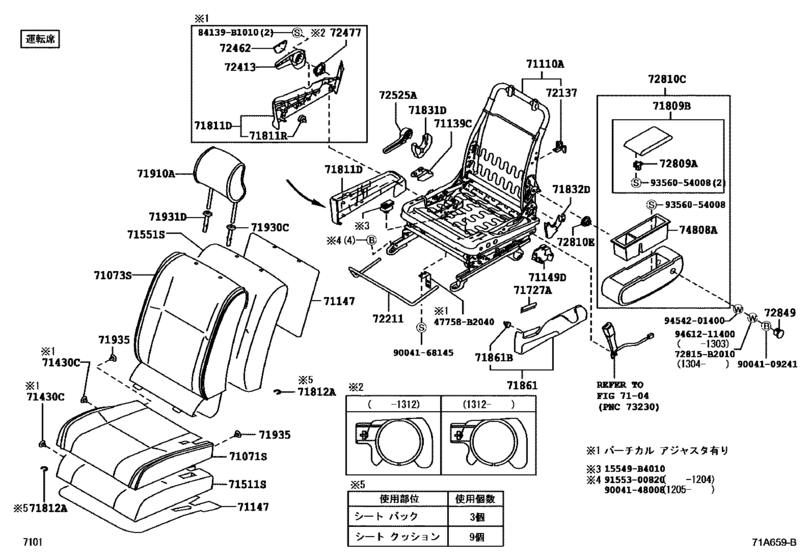

Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- )) 49

#	OEM	Part name
15549	15549-B4010	Clamp, Wiring Harness
47758	47758-B2040	Bracket, Wire Clamp, Rh No.1
71071	71071-B2B60-C1	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-B2Z60-C2	Cover, Front Seat Back, Rh(For Separate Type)
71110	71110-B2D10	Frame Assy, Front Seat W/adjuster, Rh
71139	71139-B2030-B4	Cover, Front Seat Leg, Rh
71147	71147-B2020	Silencer, Seat Spring
71147	71147-B2030	Silencer, Seat Spring
71149	71149-B2010-B4	Cover, Front Seat Leg, Inner (For Rh Seat)
71430	90044-67537	Clip
71511	71501-B2620	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71505-B2750	Pad, Front Seat Back, Rh(For Separate Type)
71727	71727-B2010	Trim, Seat Corner, No.1
71809	71809-B2200-B0	Cover Sub-Assy, Front Seat Armrest Holder
71809	71809-B2200-B1	Cover Sub-Assy, Front Seat Armrest Holder
71811	71811-B2340-B3	Shield, Front Seat Cushion, Rh
71811	90044-67419	Piece, Front Bumper
71812	71812-87201	Clip (For Front Seat Cushion Cover)
71831	71831-B2010-B1	Cover, Front Seat Hinge, Rh
71832	71832-B2040-B0	Cover, Front Seat Hinge, Lh
71861	71861-B2040-B4	Shield, Front Seat Cushion, Inner Rh
71910	71910-B2C70-C0	Headrest Assy, Front Seat
71930	71930-97202-C0	Support Assy, Rear Seat Headrest
71931	71931-97202-C0	Support, Front Seat Headrest
71935	90044-68028-B0	Clip, Rear Floor Board
72137	72137-97205	Protector, Seat Track Lower Rail, No.1
72211	72211-B2010	Handle, Seat Track Adjusting
72211	72212-B2010	Handle, Seat Track Adjusting
72413	72413-B1010-B0	Lever, Vertical Adjuster Lock
72462	72462-B1010-B0	Cover, Vertical Adjuster Rh
72477	72477-58010	Spacer, Vertical Adjuster
72477	72477-B2020	Spacer, Vertical Adjuster
72525	72525-B2010-B0	Handle, Reclining Adjuster Release, Rh
72809	72809-B2010-B3	Lock Sub-Assy, Center Armrest
72810	72810-B2460-C1	Armrest Assy, Front Seat, Center
72810	72810-B2460-C2	Armrest Assy, Front Seat, Center
72810	90043-86127	Bush, Front Seat Armrest, No.1
72815	72815-B2010	Holder, Clutch Protector Sub
72849	72848-B2020-B0	Cap, Seat Armrest, No.2
72849	72848-B2020-B2	Cap, Seat Armrest, No.1
74808	74808-B2030-B0	Box Sub-Assy, Seat Trash
74808	74808-B2030-B3	Box Sub-Assy, Seat Trash
84139	84139-B1010	New Genuine Part
9004109241	90041-09241	New Genuine Part
9004168145	90041-68145	New Genuine Part
9155300820	91553-00820	New Genuine Part
9356054008	93560-54008	New Genuine Part
9454201400	94542-01400	Spacer, Center Seat Hinge
9461211400	94612-11400	WASHERPLATE

OEM	Part name	Category
15549-B4010	Clamp, Wiring Harness	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
47758-B2040	Bracket, Wire Clamp, Rh No.1	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71071-B2B60-C1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71073-B2Z60-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71110-B2D10	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71139-B2030-B4	Cover, Front Seat Leg, Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71147-B2020	Silencer, Seat Spring	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71147-B2030	Silencer, Seat Spring	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71149-B2010-B4	Cover, Front Seat Leg, Inner (For Rh Seat)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71501-B2620	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71505-B2750	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71727-B2010	Trim, Seat Corner, No.1	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71809-B2200-B0	Cover Sub-Assy, Front Seat Armrest Holder	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71809-B2200-B1	Cover Sub-Assy, Front Seat Armrest Holder	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71811-B2340-B3	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71812-87201	Clip (For Front Seat Cushion Cover)	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71831-B2010-B1	Cover, Front Seat Hinge, Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71832-B2040-B0	Cover, Front Seat Hinge, Lh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71861-B2040-B4	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71910-B2C70-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71930-97202-C0	Support Assy, Rear Seat Headrest	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
71931-97202-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72137-97205	Protector, Seat Track Lower Rail, No.1	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72211-B2010	Handle, Seat Track Adjusting	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72212-B2010	Handle, Seat Track Adjusting	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72413-B1010-B0	Lever, Vertical Adjuster Lock	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72462-B1010-B0	Cover, Vertical Adjuster Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72477-58010	Spacer, Vertical Adjuster	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72477-B2020	Spacer, Vertical Adjuster	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72525-B2010-B0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72809-B2010-B3	Lock Sub-Assy, Center Armrest	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72810-B2460-C1	Armrest Assy, Front Seat, Center	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72810-B2460-C2	Armrest Assy, Front Seat, Center	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72815-B2010	Holder, Clutch Protector Sub	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72848-B2020-B0	Cap, Seat Armrest, No.2	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
72848-B2020-B2	Cap, Seat Armrest, No.1	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
74808-B2030-B0	Box Sub-Assy, Seat Trash	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
74808-B2030-B3	Box Sub-Assy, Seat Trash	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
84139-B1010	New Genuine Part	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90041-09241	New Genuine Part	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90041-68145	New Genuine Part	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90043-86127	Bush, Front Seat Armrest, No.1	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90044-67419	Piece, Front Bumper	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90044-67537	Clip	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
90044-68028-B0	Clip, Rear Floor Board	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
91553-00820	New Genuine Part	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
93560-54008	New Genuine Part	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
94542-01400	Spacer, Center Seat Hinge	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
94612-11400	WASHERPLATE	Front Seat & Seat Track ([09.2011 - ] ｳﾝﾃﾝｾｷ (1109- ))
