Search › Model › L585A

L585A

Toyota PIXIS · 2011 · 2,383 parts · 186 categories

← Back to categories

2,383 items

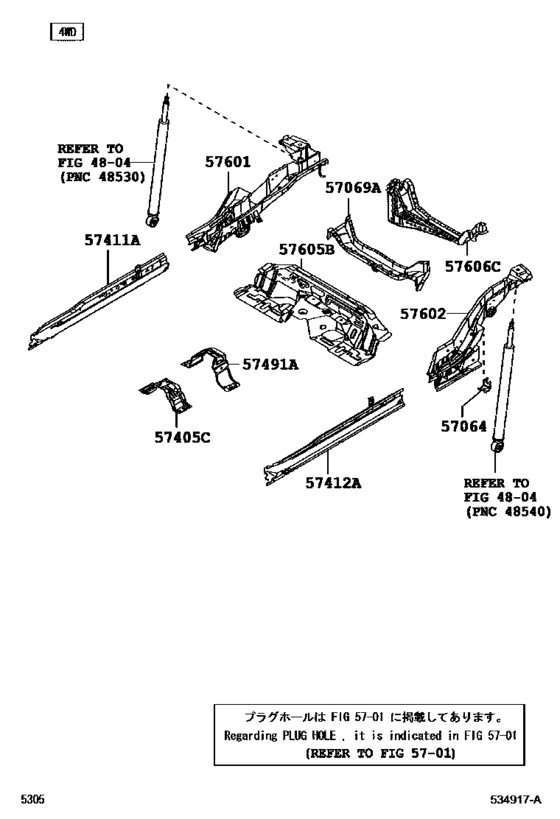

Floor Side Member ([09.2011 - ] 4WD (1109- )L585) 10

#	OEM	Part name
57064	57067-B2030	Bracket Sub-Assy, Fuel Tank Mounting, Rear Lh
57069	57069-B2310	Member, Rear Floor, Center
57405	57405-B2050	Member Sub-Assy, Center Floor Cross, Rear
57411	57401-B2081	Member, Floor Side, Inner Rh
57412	57402-B2081	Member, Floor Side, Inner Lh
57491	57055-B2051	Retainer, Floor Member Reinforcement
57601	57601-B2211	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-B2201	Member Sub-Assy, Rear Floor Side, Lh
57605	57605-B2210	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-B2020	Member Sub-Assy, Rear Floor Cross, No.2

OEM	Part name	Category
57055-B2051	Retainer, Floor Member Reinforcement	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57067-B2030	Bracket Sub-Assy, Fuel Tank Mounting, Rear Lh	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57069-B2310	Member, Rear Floor, Center	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57401-B2081	Member, Floor Side, Inner Rh	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57402-B2081	Member, Floor Side, Inner Lh	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57405-B2050	Member Sub-Assy, Center Floor Cross, Rear	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57601-B2211	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57602-B2201	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57605-B2210	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)
57606-B2020	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([09.2011 - ] 4WD (1109- )L585)

Source: Public OEM parts-catalog data
Variants: 2 / 15
Category: 186
Collected: 2026-08-04
