Search › Model › L585A

L585A

Toyota PIXIS · 2011 · 2,383 parts · 186 categories

2,383 items

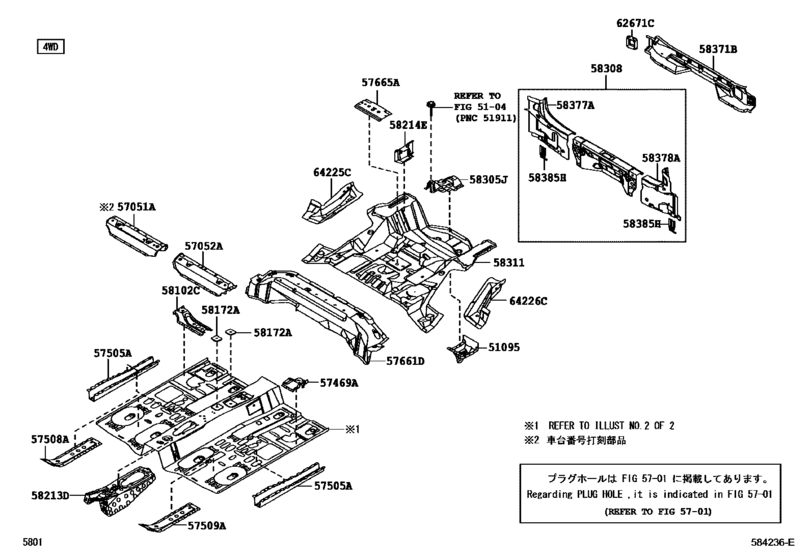

Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585) 22

#	OEM	Part name
51095	51095-B2050	Hook, Transport, Rear
57051	57051-B2070	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-B2050	Member Sub-Assy, Front Floor Cross, Lh
57469	57469-B2010	Bracket, Front Seat, Outside, Rear Lh
57505	57505-B2050	Reinforcement Sub-Assy, Front Floor Under
57508	57508-B2010	Reinforcement Sub-Assy, Front Floor, Rh
57661	57661-B2090	Member, Rear Floor Cross, Front
57665	57665-B2040	Reinforcement, Rear Floor Crossmember, No.2
58102	58018-B2020	Reinforcement Sub-Assy, Front Floor Side, Rh
58172	46521-B2010	Plate, Parking Brake Mounting
58213	58213-B2090	Reinforcement, Center Floor Panel
58214	58214-B2030	Bracket, Jack Support
58305	51908-B2060	Bracket, Spare Wheel Carrier
58308	58308-B2231	Panel Sub-Assy, Body Lower Back, Inner
58311	58311-B2150	Pan, Rear Floor
58371	58371-B2131	Panel, Body Lower Back, Outer
58377	61613-B2141	Panel, Body Lower Back, Rh
58378	61614-B2141	Panel, Body Lower Back, Lh
58385	52169-B2011	Bracket, Rear Bumper Cover, No.1
62671	62930-B4020	Cover, Lower Back Panel
64225	64225-B2040	Patch, Rear Seat Set, Rh
64226	64226-B2040	Patch, Rear Seat Set, Lh

OEM	Part name	Category
46521-B2010	Plate, Parking Brake Mounting	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
51095-B2050	Hook, Transport, Rear	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
51908-B2060	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
52169-B2011	Bracket, Rear Bumper Cover, No.1	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57051-B2070	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57052-B2050	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57469-B2010	Bracket, Front Seat, Outside, Rear Lh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57505-B2050	Reinforcement Sub-Assy, Front Floor Under	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57508-B2010	Reinforcement Sub-Assy, Front Floor, Rh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57661-B2090	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
57665-B2040	Reinforcement, Rear Floor Crossmember, No.2	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58018-B2020	Reinforcement Sub-Assy, Front Floor Side, Rh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58213-B2090	Reinforcement, Center Floor Panel	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58214-B2030	Bracket, Jack Support	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58308-B2231	Panel Sub-Assy, Body Lower Back, Inner	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58311-B2150	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
58371-B2131	Panel, Body Lower Back, Outer	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
61613-B2141	Panel, Body Lower Back, Rh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
61614-B2141	Panel, Body Lower Back, Lh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
62930-B4020	Cover, Lower Back Panel	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
64225-B2040	Patch, Rear Seat Set, Rh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
64226-B2040	Patch, Rear Seat Set, Lh	Floor Pan & Lower Back Panel ([09.2011 - ] 4WD (1109- )L585)
