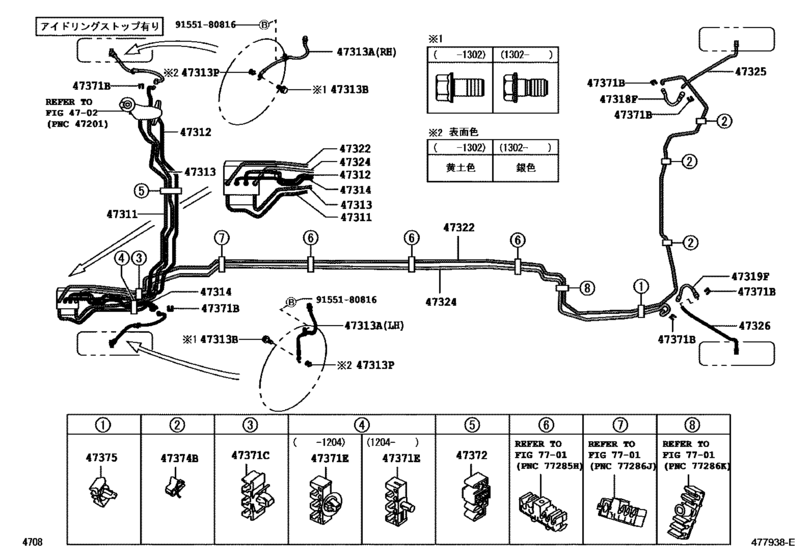

| 44050-B2520 |
Actuator Assy, Brake |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 44521-B1010 |
Spacer(For Brake Actuator Bracket) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 44546-12110 |
Cushion, Brake Actuator Bolt |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 44591-B2160 |
Bracket, Brake Actuator, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47311-B2490 |
Tube, Front Brake, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47312-B2370 |
Tube, Front Brake, No.2 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47313-B2450 |
Tube, Front Brake, No.3 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47314-B2230 |
Tube, Front Brake, No.4 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47322-B2570 |
Tube, Rear Brake, No.2 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47324-B2600 |
Tube, Rear Brake, No.4 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47325-B2030 |
Tube, Rear Brake, No.5 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47326-B2030 |
Tube, Rear Brake, No.6 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47372-B2020 |
Clamp, Brake Tube, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 47389-50020 |
Gasket(For Front Flexible Hose) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90044-64485 |
Clamp, Front Drive Vacuum Tube, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90044-64659 |
Clamp, Brake Tube, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90044-64742 |
Clamp (For Front Drive Vacuum Tube) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90044-64807 |
Clamp, Brake Tube, No.1 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90044-65441 |
Clamp, Brake Tube, No.6 |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90049-22200 |
Hose, Flexible, No.1(For Front) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90049-22201 |
Hose, Flexible, No.1(For Front) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90049-22204 |
Hose, Flexible(For Rear Rh) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90049-22314 |
Hose, Flexible, No.1(For Front) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90049-22317 |
Hose, Flexible(For Rear Rh) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90119-06834 |
Bolt, Brake Actuator Cushion |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90119-06844 |
Bolt, Brake Actuator Cushion |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 90401-10058 |
Bolt, Union(For Front Flexible Hose) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 91551-80816 |
Bolt(For Manual Transmission Oil Separator) |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
| 94151-80801 |
NUT FLANGE |
Brake Tube & Clamp ([09.2011 - ] ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟｱﾘ (1109- )PS2,PS3 ; (1109- )CTMG,X..PS1) |
