Search › Model › L575A

L575A

Toyota PIXIS · 2011 · 2,230 parts · 181 categories

2,230 items

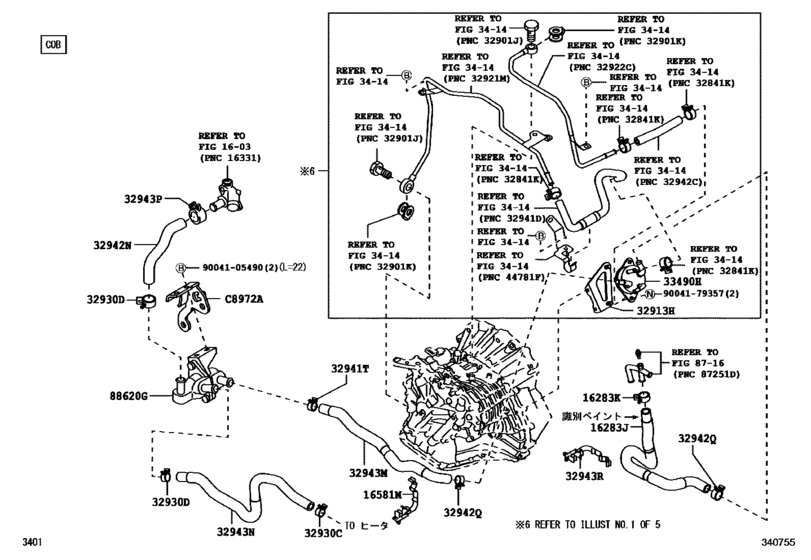

Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X) 21

#	OEM	Part name
16283	16261-B2110	Hose, Water By-Pass, No.6
16283	16261-B2160	Hose, Water By-Pass, No.6
16283	90044-67472	Clip(For Water By-Pass Hose No.6)
16581	87124-B2080	Clamp, Hose(For Water Hose)
32913	32913-B2050	Bracket, Transmission Oil Cooler
32930	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
32930	96136-42501	Clip(For Ventilation Hose)
32942	87242-B2030	Hose, Oil Cooler Outlet, No.1
32942	87242-B2110	Hose, Oil Cooler Outlet, No.1
32943	16264-B2060	Hose, Transmission Oil Cooler, No.1
32943	16264-B2100	Hose, Water By-Pass, No.2
32943	87246-B2170	Hose, Transmission Oil Cooler, No.2
32943	87246-B2250	Hose, Transmission Oil Cooler, No.2
32943	87124-B2070	Clamp, No.1(For Oil Cooler Hose)
33490	33490-B2010	Cooler Assy, Transmission Oil
88620	88620-B2010	Thermostat Assy
88620	87242-B2140	Hose, Oil Cooler Outlet, No.1
88620	88620-B2030	Thermostat Assy
88620	90041-20289	New Genuine Part
9004105490	90041-05490	New Genuine Part
9004179357	90041-79357	New Genuine Part

OEM	Part name	Category
16261-B2110	Hose, Water By-Pass, No.6	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
16261-B2160	Hose, Water By-Pass, No.6	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
16264-B2060	Hose, Transmission Oil Cooler, No.1	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
16264-B2100	Hose, Water By-Pass, No.2	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
32913-B2050	Bracket, Transmission Oil Cooler	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
33490-B2010	Cooler Assy, Transmission Oil	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87124-B2070	Clamp, No.1(For Oil Cooler Hose)	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87124-B2080	Clamp, Hose(For Water Hose)	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87242-B2030	Hose, Oil Cooler Outlet, No.1	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87242-B2110	Hose, Oil Cooler Outlet, No.1	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87242-B2140	Hose, Oil Cooler Outlet, No.1	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87246-B2170	Hose, Transmission Oil Cooler, No.2	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
87246-B2250	Hose, Transmission Oil Cooler, No.2	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
88620-B2010	Thermostat Assy	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
88620-B2030	Thermostat Assy	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
90041-05490	New Genuine Part	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
90041-20289	New Genuine Part	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
90041-79357	New Genuine Part	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
90044-67472	Clip(For Water By-Pass Hose No.6)	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
96136-42501	Clip(For Ventilation Hose)	Transaxle Assy(Cvt) ([06.2013 - 08.2015] (1306-1508)CTMG,CTMX,L,X)
