Search › Model › L32HV

L32HV

Nissan ALTIMA · 2006 · 2,826 parts · 205 categories

2,826 items

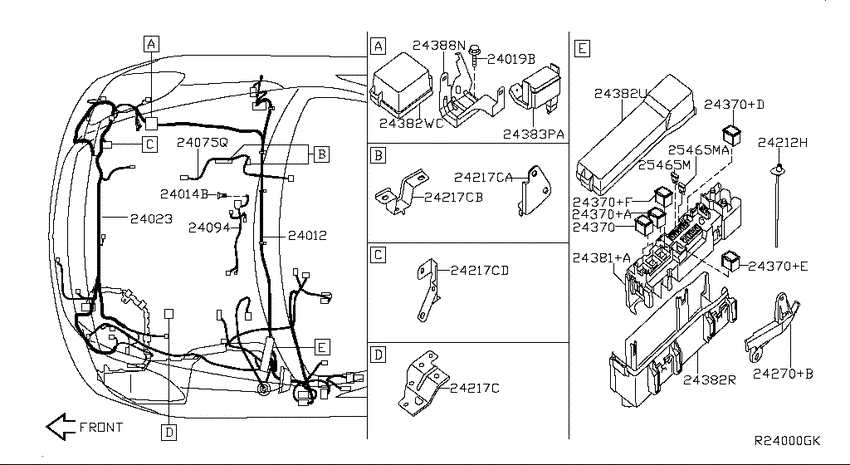

Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S) 31

#	OEM	Part name
24012	24012-JA70A	Harness-Engine Room
24012	24012-JA70C	Harness assy-engine room
24012	24012-JA70B	Harness-Engine Room
24012	24012-JA70D	Harness-Engine Room
24012	24012-ZX07A	Harness-Engine Room
24019	01225-N6031	Nut
24019	01125-N6031	Bolt
24023	24023-JA70A	Harness-Sub,
24023	24023-JA70B	Harness-Sub,
24023	24023-JA71A	Harness-Sub,
24023	24023-ZX07A	Harness-Sub,
24075	24075-JA70A	Harness-Sub, Engine
24094	24094-JA70A	Harness-Eps, Sub
24212	24228-JA70A	Clip-Wiring Harness
24217	24239-JA73A	Bracket-Harness Clip
24217	24239-JA74A	Bracket-Harness Clip
24217	24239-JA75A	Bracket-Harness Clip
24217	24239-JA72A	Bracket-Harness Clip
24217	24239-JA71A	Bracket-Harness Clip
24270	24282-JA80A	Protector-Harness
24370	24370-C991B	Connector Assy-Fusible Link
24370	24370-C992C	Connector Assy-Fusible Link
24370	24370-C994A	Connector Assy-Fusible Link
24370	24370-C992B	Connector Assy-Fusible Link
24370	24370-C995A	Connector Assy-Fusible Link
24381	24381-JA70A	Housing-Fusible Link Holder
24382	24382-JA71A	Cover-Relay Box
24382	24382-JA70A	Cover-Fusible Link Holder
24382	24382-JA80A	Cover-Relay Box
24383	24383-4P200	Housing-Relay Box
24388	24388-JA70A	Bracket-Relay Box

OEM	Part name	Category
01125-N6031	Bolt	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
01225-N6031	Nut	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24012-JA70A	Harness-Engine Room	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24012-JA70B	Harness-Engine Room	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24012-JA70C	Harness assy-engine room	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24012-JA70D	Harness-Engine Room	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24012-ZX07A	Harness-Engine Room	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24023-JA70A	Harness-Sub,	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24023-JA70B	Harness-Sub,	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24023-JA71A	Harness-Sub,	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24023-ZX07A	Harness-Sub,	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24075-JA70A	Harness-Sub, Engine	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24094-JA70A	Harness-Eps, Sub	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24228-JA70A	Clip-Wiring Harness	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24239-JA71A	Bracket-Harness Clip	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24239-JA72A	Bracket-Harness Clip	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24239-JA73A	Bracket-Harness Clip	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24239-JA74A	Bracket-Harness Clip	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24239-JA75A	Bracket-Harness Clip	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24282-JA80A	Protector-Harness	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24370-C991B	Connector Assy-Fusible Link	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24370-C992B	Connector Assy-Fusible Link	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24370-C992C	Connector Assy-Fusible Link	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24370-C994A	Connector Assy-Fusible Link	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24370-C995A	Connector Assy-Fusible Link	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24381-JA70A	Housing-Fusible Link Holder	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24382-JA70A	Cover-Fusible Link Holder	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24382-JA71A	Cover-Relay Box	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24382-JA80A	Cover-Relay Box	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24383-4P200	Housing-Relay Box	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
24388-JA70A	Bracket-Relay Box	Wiring (2006-12-01 ~ ; ENGINE ROOM; 4S)
