| 01125-N6031 |
Bolt |

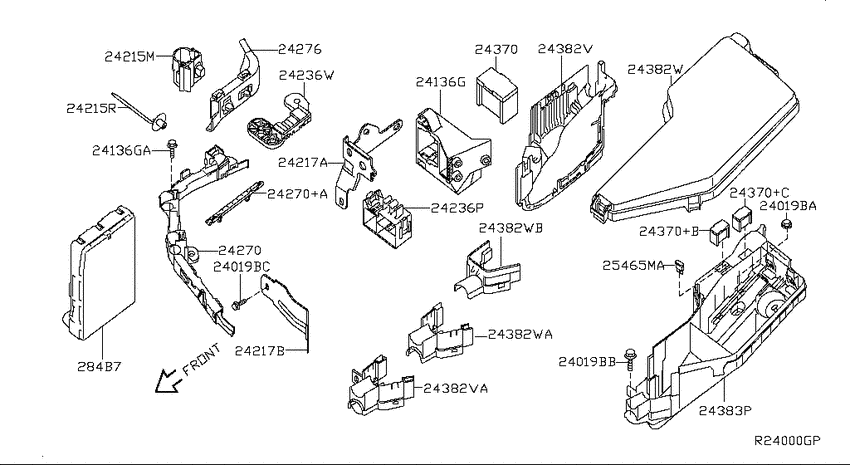

Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 01225-N6031 |
Nut |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24220-JA00A |
Clip-Wiring Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24220-JA00B |
Clip-Wiring Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24220-JA01A |
Clip-Wiring Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24225-JA00A |
Clip-Wiring Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24239-JA01E |
Bracket-Harness Clip |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24239-JA70A |
Bracket-Harness Clip |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24272-JA00A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24272-JA10A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24272-JA40A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24273-JA70A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24275-9E000 |
PROTECTOR-HARNESS |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24275-9E005 |
PROTECTOR-HARNESS |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24282-JA70A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24282-JA80A |
Protector-Harness |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24346-JA00A |
Bracket Assy-Connector |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24346-JA10B |
Bracket-Connector |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24346-JA11B |
Bracket-Connector |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24359-JA00A |
Bracket-Connector |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24370-C991B |
Connector Assy-Fusible Link |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24370-C992B |
Connector Assy-Fusible Link |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24370-C992C |
Connector Assy-Fusible Link |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24370-C994A |
Connector Assy-Fusible Link |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24370-C995A |
Connector Assy-Fusible Link |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA02A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA04A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA40A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA40B |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA41A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA43A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA80A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24382-JA81A |
Cover-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24383-4P200 |
Housing-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
| 24383-JA00A |
Housing-Relay Box |
Wiring (2006-12-01 ~ 2009-10-01; FITTING(ENGINE ROOM); 4S) |
